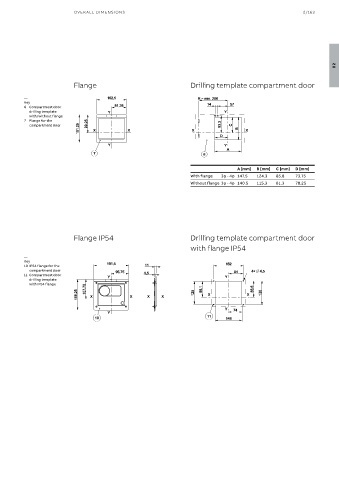

OVER ALL DIMENSIONS 2/163
02
Flange Drilling template compartment door
—
Key
6 Compartment door
drilling template
with/without flange
7 Flange for the
compartment door
A [mm] B [mm] C [mm] D [mm]
With flange 3p - 4p 147.5 124.3 85.8 73.75
Without flange 3p - 4p 140.5 115.3 81.3 70.25
Flange IP54 Drilling template compartment door
with flange IP54
—
Key
10 IP54 flange for the
compartment door
11 Compartment door
drilling template
with IP54 flange
