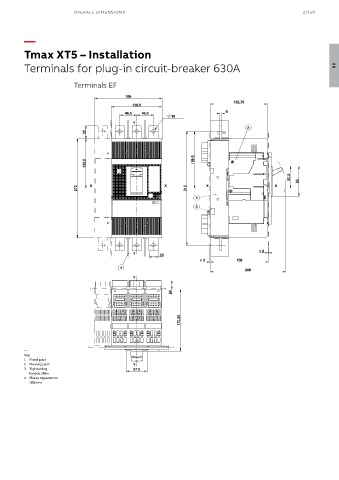

OVER ALL DIMENSIONS                                                             2/159



          —

          Tmax XT5 – Installation


          Terminals for plug-in circuit-breaker 630A                                                                   02


                           Terminals EF
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
