2/162            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

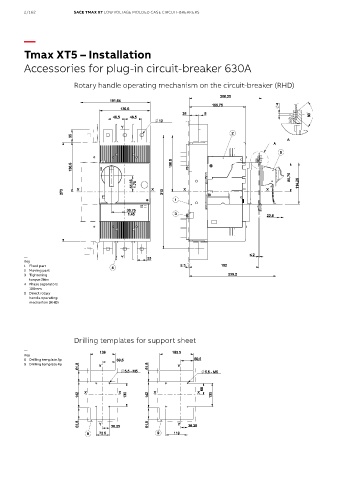

          Tmax XT5 – Installation


          Accessories for plug-in circuit-breaker 630A


                           Rotary handle operating mechanism on the circuit-breaker (RHD)




































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Direct rotary
           handle operating
           mechanism (RHD)






                           Drilling templates for support sheet
          —
          Key
          8  Drilling template 3p
          9  Drilling template 4p
