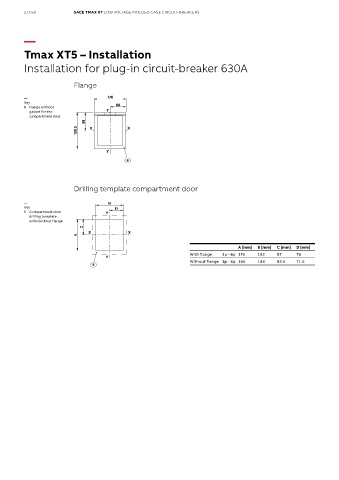

Tmax XT5 – Installation
Installation for plug-in circuit-breaker 630A
Flange
—
Key
6 Flange without
gasket for the
compartment door
Drilling template compartment door
—
Key
5 Compartment door
drilling template
with/without flange
A [mm] B [mm] C [mm] D [mm]
With flange 3p - 4p 174 152 87 76
Without flange 3p - 4p 165 143 82.5 71.5
