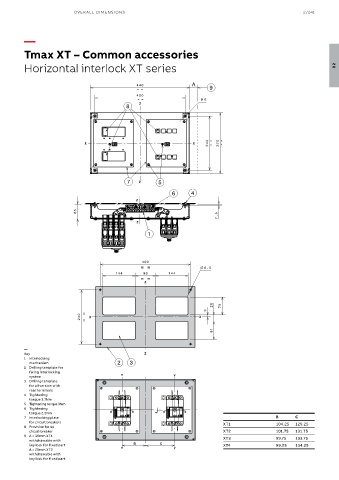

OVER ALL DIMENSIONS 2/241

—

Tmax XT – Common accessories

Horizontal interlock XT series 02

—
Key
1 Interlocking
mechanism
2 Drilling template for
fixing interlocking
system
3 Drilling template
for all version with
rear terminals
4 Tightening
torque 3.7Nm
5 Tightening torque 3Nm
6 Tightening
torque 2.5Nm
7 Interlocking plate B C
for circuit breakers
8 Provision for 4p XT1 104.25 129.25
circuit-breaker XT2 101.75 131.75
9 A = 35mm XT4
withdrawable with XT3 99.75 133.75
key lock for fixed part B C XT4 99.25 134.25
A = 25mm XT2
withdrawable with
key lock for fixed part
