2/240 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

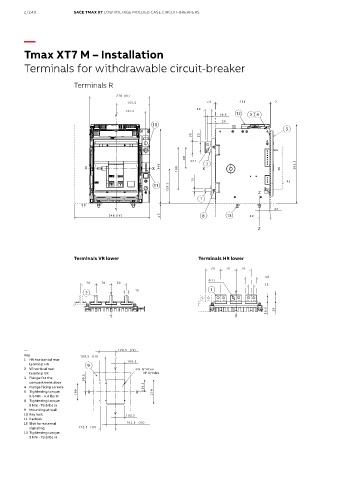

Tmax XT7 M – Installation

Terminals for withdrawable circuit-breaker

Terminals R

Terminals VR lower Terminals HR lower

—
Key
1 HR horizontal rear
terminal HR
2 VR vertical rear
terminal VR N° 4 Holes
3 Flange for the
compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
8 Tightening torque
9 Nm - 79.6 lbs in
9 Mounting at wall
10 Key lock
11 Padlock
12 Slot for external
signaling
13 Tightening torque
9 Nm - 79.6 lbs in
