Page 317 - SACE Tmax XT - Technical Catalogue
P. 317

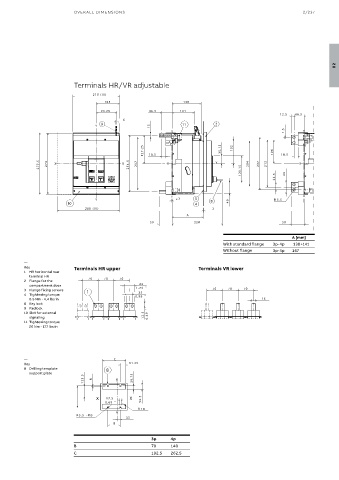

OVER ALL DIMENSIONS 2/237
02
Terminals HR/VR adjustable
210 (III)
105 130
93.25 46.5 101
12.5 46.5
6
9 2
Y 15 11
1.5
127.25 18.5 35.15 102 106 18.5
277.5 274 X X 254.5 237 X X 204 237 212 X
120.15
23.5 44
Y 3 3 8 R 5.5
10 4 49
280 (IV) 2
A
59 228 59
A [mm]
With standard flange 3p-4p 130÷141
Without flange 3p-4p 147
—
Key Terminals HR upper Terminals VR lower
1 HR horizontal rear
terminal HR
2 Flange for the
compartment door
3 Flange fixing screws
4 Tightening torque
0.5 Nm - 4,4 lbs in
8 Key lock
9 Padlock
10 Slot for external
signaling
11 Tightening torque
20 Nm - 177 lbs in
—
Key
8 Drilling template
support plate
3p 4p
B 70 140
C 192.5 262.5
