OVER ALL DIMENSIONS 2/239

—

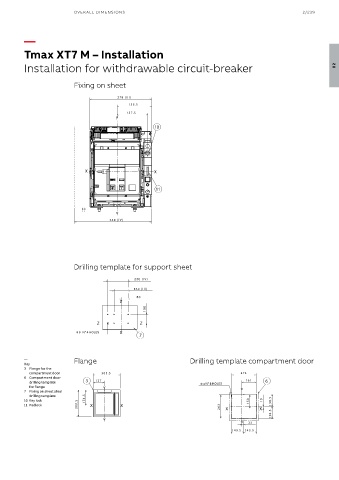

Tmax XT7 M – Installation

Installation for withdrawable circuit-breaker 02

Fixing on sheet

Drilling template for support sheet

N° 4 HOLES

— Flange Drilling template compartment door
Key
3 Flange for the
compartment door
6 Compartment door
drilling template N° 8 HOLES
for flange
7 Fixing on sheet steel
drilling template
10 Key lock
11 Padlock
