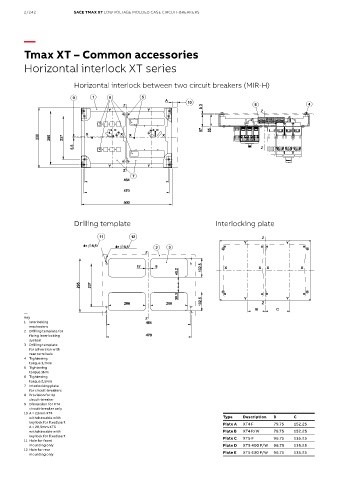

2/242 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT – Common accessories

Horizontal interlock XT series

Horizontal interlock between two circuit breakers (MIR-H)

Drilling template Interlocking plate

—
Key
1 Interlocking
mechanism
2 Drilling template for
fixing interlocking
system
3 Drilling template
for all version with
rear terminals
4 Tightening
torque 3,7Nm
5 Tightening
torque 3Nm
6 Tightening
torque 2,5Nm
7 Interlocking plate
for circuit-breakers
8 Provision for 4p
circuit-breaker
9 Dimension for XT4
circuit-breaker only
10 A = 23mm XT4
withdrawable with Type Description B C
key lock for fixed part Plate A XT4 F 79.75 152.25
A = 28,5mm XT5
withdrawable with Plate B XT4 P/W 79.75 152.25
key lock for fixed part
11 Hole for front Plate C XT5 F 96.75 135.25
mounting only Plate D XT5 400 P/W 96.75 135.25
12 Hole for rear
mounting only Plate E XT5 630 P/W 96.75 135.25
