OVER ALL DIMENSIONS 2/249
02

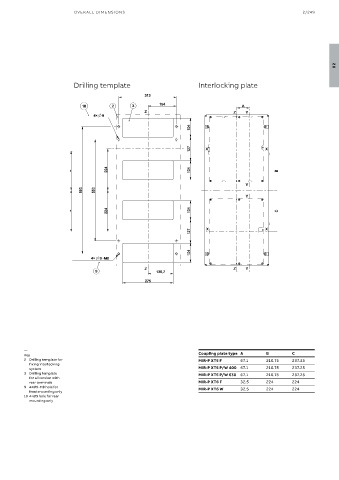

Drilling template Interlocking plate
—
Key Coupling plate type A B C
2 Drilling template for MIR-P XT5 F 67.1 210.75 237.25
fixing interlocking
system MIR-P XT5 P/W 400 67.1 210.75 237.25
3 Drilling template MIR-P XT5 P/W 630 67.1 210.75 237.25
for all version with
rear terminals MIR-P XT6 F 32.5 224 224
9 4×Ø9-M8 hole for MIR-P XT6 W 32.5 224 224
front mounting only
10 4×Ø9 hole for rear
mounting only
