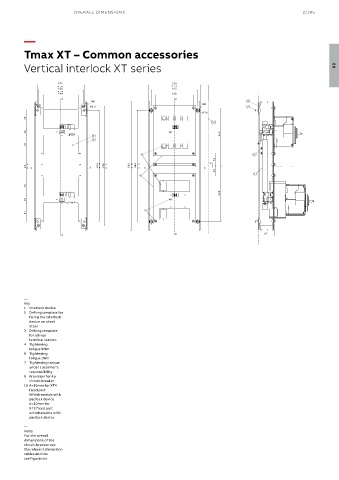

OVER ALL DIMENSIONS 2/245

—

Tmax XT – Common accessories

Vertical interlock XT series 02

—
Key
1 Interlock device
2 Drilling template for
fixing the interlock
device on sheet
Steel
3 Drilling template
for all rear
terminal version
4 Tightening
torque 9Nm
Coupling plate type A B C 6 Tightening
torque 1Nm
MIR-P XT5 F 13.25 102.9 232.1 7 Tightening torque
MIR-P XT5 P/W 400 13.25 102.9 232.1 under customer's
responsibility
MIR-P XT5 P/W 630 13.25 102.9 232.1 9 Provision for 4p
MIR-P XT6 F 0 137.5 197.5 circuit-breaker
10 A=35mm for XT4
MIR-P XT6 W 0 137.5 197.5 fixed part
Withdrawable with
padlock device
A=30mm for
XT2 fixed part
withdrawable with
padlock device
—
Note:
For the overall
dimensions of the
circuit-breaker see
the relevant dimension
tables and the
configuration
