2/246 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT – Common accessories

Vertical interlock XT series

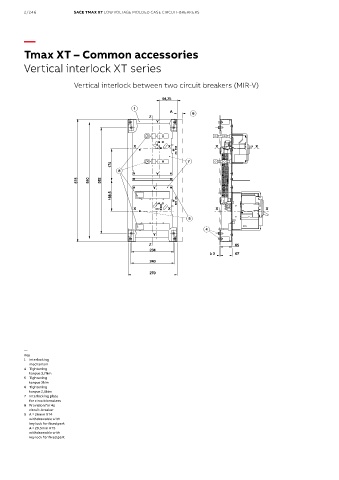

Vertical interlock between two circuit breakers (MIR-V)

—
Key
1 Interlocking
mechanism
4 Tightening
torque 3,7Nm
5 Tightening
torque 3Nm
6 Tightening
torque 2,5Nm
7 Interlocking plate
for circuit-breakers
8 Provision for 4p
circuit-breaker
9 A = 26mm XT4
withdrawable with
key lock for fixed part
A = 29,5mm XT5
withdrawable with
key lock for fixed part
