2/244 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT – Common accessories

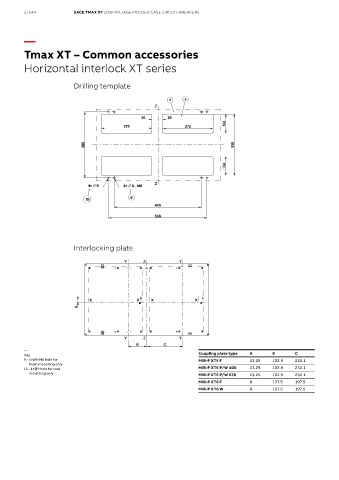

Horizontal interlock XT series

Drilling template

Interlocking plate

—
Key Coupling plate type A B C
9 - 4×Ø9-M8 hole for MIR-P XT5 F 13.25 102.9 232.1
front mounting only
10 - 4×Ø9 hole for rear MIR-P XT5 P/W 400 13.25 102.9 232.1
mounting only MIR-P XT5 P/W 630 13.25 102.9 232.1
MIR-P XT6 F 0 137.5 197.5
MIR-P XT6 W 0 137.5 197.5
