Page 327 - SACE Tmax XT - Technical Catalogue
P. 327

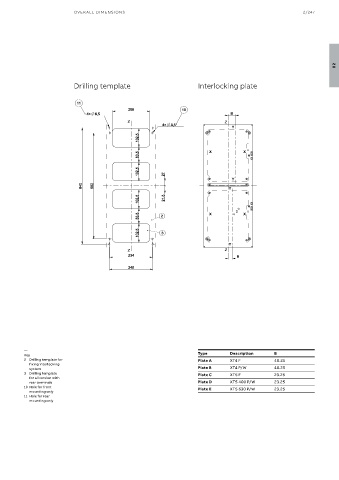

OVER ALL DIMENSIONS 2/247
02
Drilling template Interlocking plate
—
Key Type Description B
2 Drilling template for Plate A XT4 F 40.25
fixing interlocking
system Plate B XT4 P/W 40.25
3 Drilling template Plate C XT5 F 23.25
for all version with
rear terminals Plate D XT5 400 P/W 23.25
10 Hole for front Plate E XT5 630 P/W 23.25
mounting only
11 Hole for rear
mounting only
