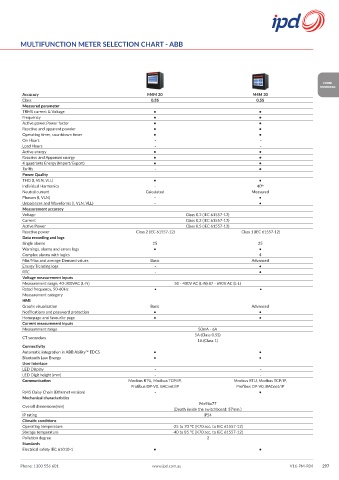

MULTIFUNCTION METER SELECTION CHART - ABB
POWER
MONITORING
Accuracy M4M 20 M4M 30
Class 0.5S 0.5S
Measured parameter
TRMS current & Voltage • •
Frequency • •
Active power,Power factor • •
Reactive and apparent powder • •
Operating timer, countdown timer • •
On Hours - -
Load Hours - -
Active energy • •
Reactive and Apparent energy • •
4 quadrants Energy (Import/Export) • •
Tariffs - •
Power Quality
THD (I, VLN, VLL) • •
Individual Harmonics - 40 th
Neutral current Calculated Measured
Phasors (I, VLN) - •
Unbalances and Waveforms (I, VLN, VLL) - •
Measurement accuracy
Voltage Class 0.2 (IEC 61557-12)
Current Class 0.2 (IEC 61557-12)
Active Power Class 0.5 (IEC 61557-12)
Reactive power Class 2 (IEC 61557-12) Class 1 (IEC 61557-12)
Data recording and logs
Single alarms 25 25
Warnings, alarms and errors logs • •
Complex alarms with logics 4
Min/Max and average Demand values Basic Advanced
Energy Trending logs - •
RTC - •
Voltage measurement inputs
Measurement range, 40-300VAC (L-N) 50 - 400V AC (L-N) 87 - 690V AC (L-L)
Rated frequency, 50-60Hz • •
Measurement category
HMI
Graphs visualization Basic Advanced
Notifications and password protection • •
Homepage and favourite page • •
Current measurement inputs
Measurement range 50mA - 6A
5A (Class 0.5S)
CT secondary
1A (Class 1)
Connectivity
Automatic integration in ABB Ability™ EDCS • •
Bluetooth Low Energy • •
User Interface
LED Display - -
LED Digit height (mm) - -
Communication Modbus RTU, Modbus TCP/IP, Modbus RTU, Modbus TCP/IP,
Profibus DP-V0, BACnet/IP Profibus DP-V0, BACnet/IP
RJ45 Daisy Chain (Ethernet version) - •
Mechanical characteristics
96x96x77
Overall dimensions(mm)
(Depth inside the switchboard: 57mm )
IP rating IP54
Climatic conditions
Operating temperature -25 to 70 °C (K70 acc. to IEC 61557-12)
Storage temperature -40 to 85 °C (K70 acc. to IEC 61557-12)
Pollution degree 2
Standards
Electrical safety IEC 61010-1 • •
