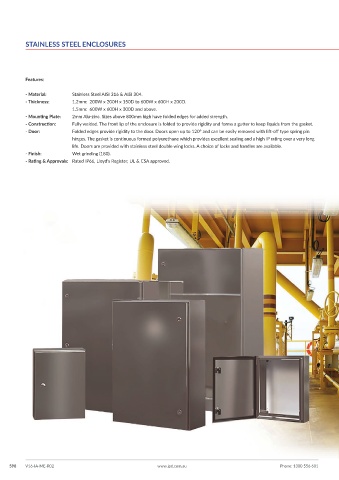

STAINLESS STEEL ENCLOSURES

Features:

- Material: Stainless Steel AISI 316 & AISI 304.
- Thickness: 1.2mm: 200W x 200H x 150D to 600W x 600H x 200D.
1.5mm: 600W x 600H x 300D and above.
- Mounting Plate: 2mm Alu-zinc. Sizes above 800mm high have folded edges for added strength.
- Construction: Fully welded. The front lip of the enclosure is folded to provide rigidity and forms a gutter to keep liquids from the gasket.
- Door: Folded edges provide rigidity to the door. Doors open up to 120° and can be easily removed with lift-off type spring pin
hinges. The gasket is continuous formed polyurethane which provides excellent sealing and a high IP rating over a very long
life. Doors are provided with stainless steel double wing locks. A choice of locks and handles are available.
- Finish: Wet grinding (180).
- Rating & Approvals: Rated IP66, Lloyd’s Register, UL & CSA approved.
