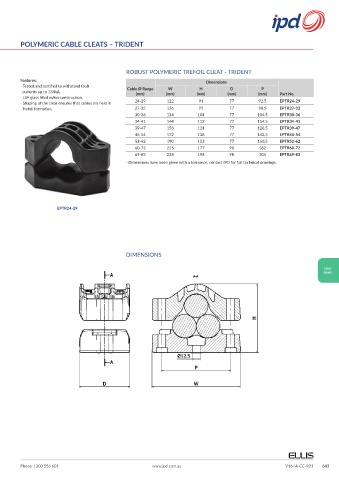

POLYMERIC CABLE CLEATS – TRIDENT

ROBUST POLYMERIC TREFOIL CLEAT - TRIDENT
Features: Dimensions
- Tested and certified to withstand fault Cable Ø Range W H D P
currents up to 134kA. (mm) (mm) (mm) (mm) (mm) Part No.
- LSF glass filled nylon construction.
- Shaping of the cleat ensures that cables are held in 24-29 122 91 77 92.5 EPTR24-29
Trefoil formation. 27-32 126 95 77 98.5 EPTR27-32
30-36 134 104 77 104.5 EPTR30-36
34-41 144 112 77 114.5 EPTR34-41
39-47 156 124 77 126.5 EPTR39-47
45-54 172 138 77 142.5 EPTR45-54
52-62 190 153 77 160.5 EPTR52-62
60-72 215 177 98 182 EPTR60-72
69-83 238 198 98 205 EPTR69-83
- Dimensions have been given with a tolerance, contact IPD for full technical drawings.

EPTR24-29

DIMENSIONS

CABLE
CLEATS
