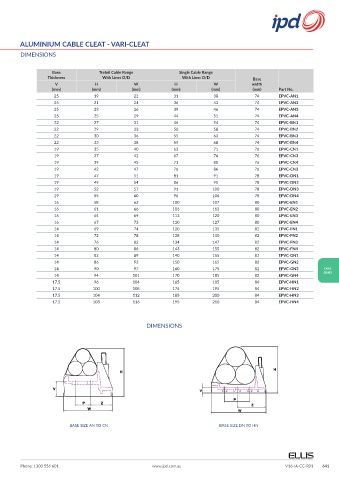

ALUMINIUM CABLE CLEAT - VARI-CLEAT
DIMENSIONS

Base Trefoil Cable Range Single Cable Range
Thickness With Liner O/D With Liner O/D Base
V H W H W width
(mm) (mm) (mm) (mm) (mm) (mm) Part No.
25 19 22 31 38 74 EPVC-AN1
25 21 24 36 43 74 EPVC-AN2
25 23 26 39 46 74 EPVC-AN3
25 25 29 44 51 74 EPVC-AN4
22 27 31 46 54 74 EPVC-BN1
22 29 33 50 58 74 EPVC-BN2
22 30 36 55 63 74 EPVC-BN3
22 33 38 59 68 74 EPVC-BN4
19 35 40 63 71 76 EPVC-CN1
19 37 42 67 76 76 EPVC-CN3
19 39 45 71 80 76 EPVC-CN4
19 42 47 76 86 76 EPVC-CN3
19 47 51 81 91 78 EPVC-DN1
19 49 54 86 95 78 EPVC-DN2
19 52 57 91 100 78 EPVC-DN3
19 55 60 96 106 78 EPVC-DN4
16 58 62 100 107 80 EPVC-EN1
16 61 66 106 113 80 EPVC-EN2
16 64 69 113 120 80 EPVC-EN3
16 67 73 120 127 80 EPVC-EN4
14 69 74 120 135 82 EPVC-FN1
14 72 78 128 140 82 EPVC-FN2
14 76 82 134 147 82 EPVC-FN3
14 80 86 143 155 82 EPVC-FN4
14 82 89 140 155 82 EPVC-GN1
14 86 93 150 165 82 EPVC-GN2
14 90 97 160 175 82 EPVC-GN3 CABLE
14 94 101 170 185 82 EPVC-GN4 CLEATS
17.5 96 104 165 185 84 EPVC-HN1
17.5 100 108 175 195 84 EPVC-HN2
17.5 104 112 185 200 84 EPVC-HN3
17.5 108 116 195 210 84 EPVC-HN4

DIMENSIONS

BASE SIZE AN TO CN BASE SIZE DN TO HN
