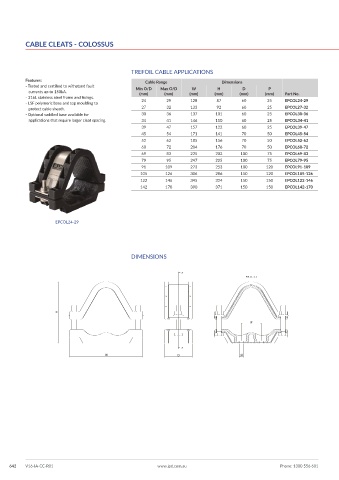

Page 650 - V16 Catalogue Final

CABLE CLEATS - COLOSSUS

TREFOIL CABLE APPLICATIONS
Features: Cable Range Dimensions
- Tested and certified to withstand fault Min O/D Max O/D W H D P
currents up to 150kA. (mm) (mm) (mm) (mm) (mm) (mm) Part No.
- 316L stainless steel frame and fixings. 24 29 128 87 60 25 EPCOL24-29
- LSF polymeric base and top moulding to
protect cable sheath. 27 32 133 92 60 25 EPCOL27-32
- Optional saddled base available for 30 36 137 101 60 25 EPCOL30-36
applications that require larger cleat spacing. 34 41 146 110 60 25 EPCOL34-41
39 47 157 122 60 25 EPCOL39-47
45 54 171 141 70 50 EPCOL45-54
52 62 185 156 70 50 EPCOL52-62
60 72 204 176 70 50 EPCOL60-72
69 83 225 202 100 75 EPCOL69-83
79 95 247 225 100 75 EPCOL79-95
91 109 273 253 100 120 EPCOL91-109
105 126 306 286 150 120 EPCOL105-126
122 146 345 324 150 150 EPCOL122-146
142 170 390 371 150 150 EPCOL142-170

EPCOL24-29

DIMENSIONS
