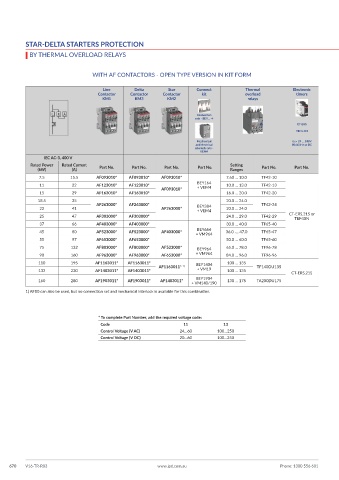

Page 678 - V16 Catalogue Final

STAR-DELTA STARTERS PROTECTION
BY THERMAL OVERLOAD RELAYS

WITH AF CONTACTORS - OPEN TYPE VERSION IN KIT FORM

Line Delta Star Connect Thermal Electronic
Contactor Contactor Contactor kit overload timers
KM1 KM3 KM2 relays

Connection
sets - BEY .. -4
CT-ERS
TEF4-0N
Mechanical Uc= 24 ... 240V
and electrical 50/60 Hz or DC
interlock sets -
VEM4
IEC AC-3, 400 V
Rated Power Rated Current Part No. Part No. Part No. Part No. Setting Part No. Part No.
(kW) (A) Ranges
7.5 15.5 AF093010* AF093010* AF093010* 7.60 ... 10.0 TF42-10
11 22 AF123010* AF123010* BEY164 10.0 ... 13.0 TF42-13
AF093010* + VEM4
15 29 AF163010* AF163010* 16.0 ... 20.0 TF42-20
18.5 35 20.0 ... 24.0
AF263000* AF263000* BEY384 TF42-24
22 41 AF263000* + VEM4 20.0 ... 24.0
25 47 AF303000* AF303000* 24.0 ... 29.0 TF42-29 CT-ERS.21S or
TEF40N
37 66 AF403000* AF403000* 30.0 ... 40.0 TF65-40
BEY654
45 80 AF523000* AF523000* AF403000* + VM964 36.0 .... 47.0 TF65-47
55 97 AF653000* AF653000* 50.0 ... 60.0 TF65-60
75 132 AF803000* AF803000* AF523000* BEY964 65.0 ... 78.0 TF96-78
90 160 AF963000* AF963000* AF653000* + VM964 84.0 ... 96.0 TF96-96
110 195 AF1163011* AF1163011* BEY1404 100 ... 135
AF1163011* 1) TF140DU135
132 230 AF1403011* AF1403011* + VM19 100 ... 135 CT-ERS.21S
BEY1904
160 280 AF1903011* AF1903011* AF1403011* + VM140/190 130 ... 175 TA200DU175
1) AF80 can also be used, but no connection set and mechanical interlock is available for this combination.

* To complete Part Number, add the required voltage code:
Code 11 13
Control Voltage (V AC) 24…60 100…250
Control Voltage (V DC) 20…60 100…250
