MOTOR PROTECTION

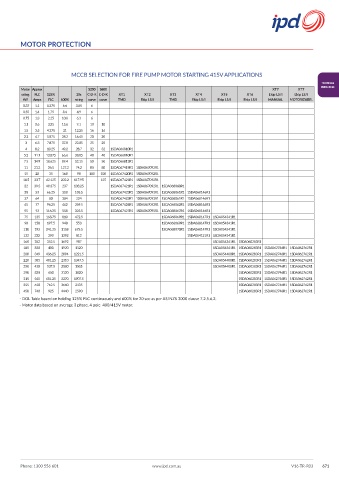

MCCB SELECTION FOR FIRE PUMP MOTOR STARTING 415V APPLICATIONS
TECHNICAL
RESOURCES
Motor Approx S200 S800 XT7 XT7
rating FLC 125% 20s C-D-K C-D-K XT1 XT2 XT3 XT4 XT5 XT6 Ekip LS/I Ekip LS/I
kW Amps FLC 600% rating curve curve TMD Ekip LS/I TMD Ekip LS/I Ekip LS/I Ekip LS/I MANUAL MOTORIZABEL
0.37 1.1 1.375 6.6 3.85 6
0.55 1.4 1.75 8.4 4.9 6
0.75 1.8 2.25 10.8 6.3 6
1.1 2.6 3.25 15.6 9.1 10 10
1.5 3.5 4.375 21 12.25 16 16
2.2 4.7 5.875 28.2 16.45 20 20
3 6.3 7.875 37.8 22.05 25 25
4 8.2 10.25 49.2 28.7 32 32 1SDA066810R1
5.5 11.1 13.875 66.6 38.85 40 40 1SDA066810R1
7.5 14.9 18.625 89.4 52.15 50 50 1SDA066811R1
11 21.2 26.5 127.2 74.2 80 80 1SDA067419R1 1SDA067092R1
15 28 35 168 98 100 100 1SDA067420R1 1SDA067092R1
18.5 33.7 42.125 202.2 117.95 125 1SDA067421R1 1SDA067092R1
22 39.5 49.375 237 138.25 1SDA067421R1 1SDA067092R1 1SDA068060R1
30 53 66.25 318 185.5 1SDA067423R1 1SDA067093R1 1SDA068061R1 1SDA068146R1
37 64 80 384 224 1SDA067423R1 1SDA067093R1 1SDA068061R1 1SDA068146R1
45 77 96.25 462 269.5 1SDA067424R1 1SDA067093R1 1SDA068062R1 1SDA068146R1
55 93 116.25 558 325.5 1SDA067427R1 1SDA067095R1 1SDA068067R1 1SDA068146R1
75 135 168.75 810 472.5 1SDA068069R1 1SDA068147R1 1SDA054341R1
90 158 197.5 948 553 1SDA068069R1 1SDA068147R1 1SDA054341R1
110 193 241.25 1158 675.5 1SDA068070R1 1SDA068147R1 1SDA054341R1
132 232 290 1392 812 1SDA054121R1 1SDA054341R1
160 282 352.5 1692 987 1SDA054341R1 1SDA060283R1
185 320 400 1920 1120 1SDA054341R1 1SDA060283R1 1SDA062746R1 1SDA062762R1
200 349 436.25 2094 1221.5 1SDA054408R1 1SDA060283R1 1SDA062746R1 1SDA062762R1
220 385 481.25 2310 1347.5 1SDA054408R1 1SDA060283R1 1SDA062746R1 1SDA062762R1
250 430 537.5 2580 1505 1SDA054408R1 1SDA060283R1 1SDA062746R1 1SDA062762R1
290 520 650 3120 1820 1SDA060283R1 1SDA062746R1 1SDA062762R1
315 545 681.25 3270 1907.5 1SDA060283R1 1SDA062746R1 1SDA062762R1
355 610 762.5 3660 2135 1SDA060283R1 1SDA062746R1 1SDA062762R1
450 740 925 4440 2590 1SDA060283R1 1SDA062746R1 1SDA062762R1
- DOL Table based on holding 125% FLC continuously and 600% for 20 sec as per AS/NZS 3000 clause 7.2.5.6.2.
- Motor data based on average 3 phase, 4 pole 400/415V motor.
