MOTOR PROTECTION

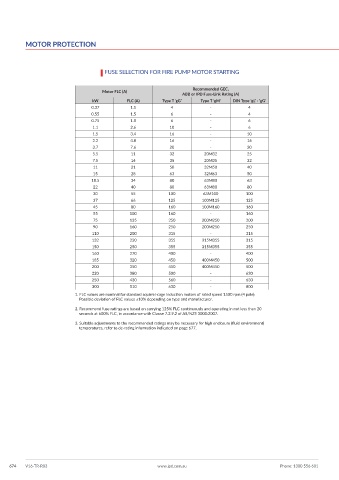

FUSE SELECTION FOR FIRE PUMP MOTOR STARTING

Motor FLC (A) Recommended GEC,
ABB or IPD Fuse-Link Rating (A)
kW FLC (A) Type T ‘gG’ Type T ‘gM’ DIN Type ‘gL’ - ‘gG’
0.37 1.1 4 - 4
0.55 1.5 6 - 4
0.75 1.8 6 - 6
1.1 2.6 10 - 6
1.5 3.4 16 - 10
2.2 4.8 16 - 16
3.7 7.6 20 - 20
5.5 11 32 20M32 25
7.5 14 35 20M35 32
11 21 50 32M50 40
15 28 63 32M63 50
18.5 34 80 63M80 63
22 40 80 63M80 80
30 55 100 63M100 100
37 66 125 100M125 125
45 80 160 100M160 160
55 100 160 - 160
75 135 250 200M250 200
90 160 250 200M250 250
110 200 315 - 315
132 230 355 315M355 315
150 250 355 315M355 355
160 270 400 - 400
185 320 450 400M450 500
200 350 450 400M450 500
220 380 500 - 630
250 430 560 - 630
300 510 630 - 800
1. FLC values are nominal for standard squirrel-cage induction motors of rated speed 1500 rpm (4 pole).
Possible deviation of FLC values ±10% depending on type and manufacturer.
2. Recommend fuse ratings are based on carrying 125% FLC continuously and operating in not less than 20
seconds at 600% FLC, in accordance with Clause 7.2.9.2 of AS/NZS 3000:2007.
3. Suitable adjustments to the recommended ratings may be necessary for high enclosure (fluid environment)
temperatures, refer to de-rating information indicated on page 677.
