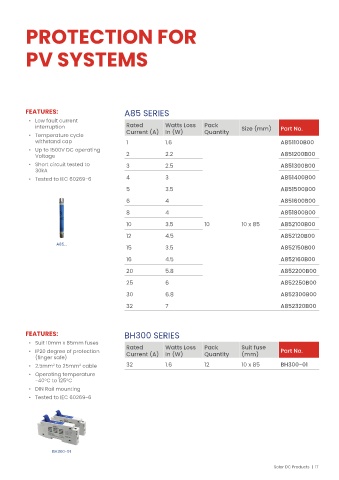

Page 17 - Solar DC Products
P. 17
PROTECTION FOR
PV SYSTEMS
FEATURES: A85 SERIES
• Low fault current
interruption Rated Watts Loss Pack Size (mm) Part No.
Current (A) In (W) Quantity
• Temperature cycle
withstand cap 1 1.6 A851100B00
• Up to 1500V DC operating
2 2.2 A851200B00
Voltage
• Short circuit tested to 3 2.5 A851300B00
30kA
• Tested to IEC 60269-6 4 3 A851400B00
5 3.5 A851500B00
6 4 A851600B00
8 4 A851800B00
10 3.5 10 10 x 85 A852100B00
12 4.5 A852120B00
A85...
15 3.5 A852150B00
16 4.5 A852160B00
20 5.8 A852200B00
25 6 A852250B00
30 6.8 A852300B00
32 7 A852320B00
FEATURES: BH300 SERIES
• Suit 10mm x 85mm fuses
Rated Watts Loss Pack Suit fuse
• IP20 degree of protection Part No.
Current (A) In (W) Quantity (mm)
(finger safe)
2
2
• 2.5mm to 25mm cable 32 1.6 12 10 x 85 BH300-01
• Operating temperature
-40°C to 125°C
• DIN Rail mounting
• Tested to IEC 60269-6
BH300-01
Solar DC Products | 17
