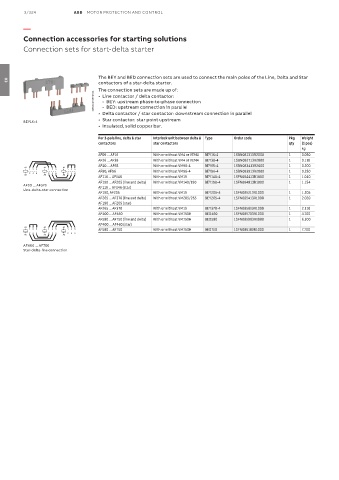

3/324 ABB MOTOR PROTECTION AND CONTROL

—

Connection accessories for starting solutions
Connection sets for start-delta starter

The BEY and BED connection sets are used to connect the main poles of the Line, Delta and Star
contactors of a star-delta starter.
03
The connection sets are made up of:
1SBC100018V0014 • Line contactor / delta contactor:
- BEY: upstream phase-to-phase connection
- BED: upstream connection in parallel
• Delta contactor / star contactor: downstream connection in parallel
• Star contactor: star point upstream
BEY16-4
• Insulated, solid copper bar.
For 3-pole line, delta & star Interlock unit between delta & Type Order code Pkg Weight
contactors star contactors qty (1 pce)
kg
AF09 ... AF16 With or without VM4 or VEM4 BEY16-4 1SBN081313R2000 1 0.050
AF26 ... AF38 With or without VM4 or VEM4 BEY38-4 1SBN082713R2000 1 0.110
AF40 ... AF65 With or without VM96-4 BEY65-4 1SBN083413R2000 1 0.200
A1 A1 A1
1 3 5 1 3 5 1 3 5 AF80, AF96 With or without VM96-4 BEY96-4 1SBN083913R2000 1 0.250
2 4 6 2 4 6 2 4 6
A2 A2 A2
AF116 ... AF146 With or without VM19 BEY140-4 1SFN084413R1000 1 1.040
AF190 ... AF205 (line and delta) With or without VM140/190 BEY190-4 1SFN084813R1000 1 1.154
AF09 ... AF370 AF116 ... AF146 (star)
Line-delta-star connection
AF190, AF205 With or without VM19 BEY205-4 1SFN085213R1000 1 1.205
AF265 ... AF370 (line and delta) With or without VM205/265 BEY265-4 1SFN085413R1000 1 2.020
AF190 ... AF205 (star)
AF265 ... AF370 With or without VM19 BEY370-4 1SFN085813R1000 1 2.110
AF400 ... AF460 With or without VM750H BED460 1SFN085703R1000 1 4.700
AF580 ... AF750 (line and delta) With or without VM750H BED580 1SFN085903R1000 1 6.300
AF400 ... AF460 (star)
A1 A1 A1
1 3 5 1 3 5 1 3 5 AF580 ... AF750 With or without VM750H BED750 1SFN086103R1000 1 7.700
2 4 6 2 4 6 2 4 6
A2 A2 A2
AF400 ... AF750
Star-delta-line connection
