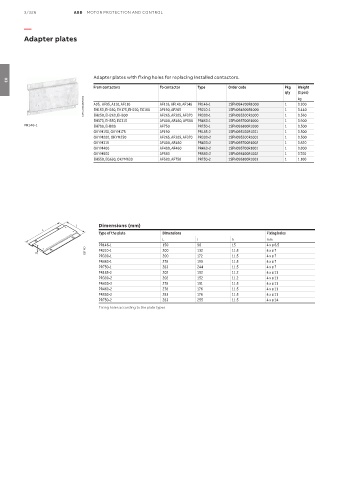

3/326 ABB MOTOR PROTECTION AND CONTROL

—

Adapter plates

Adapter plates with fixing holes for replacing installed contactors.
03
From contactors To contactor Type Order code Pkg Weight
qty (1 pce)
1SFC101048V0001 A95, AF95, A110, AF110 AF116, AF140, AF146 PR146-1 1SFN094200R1000 1 1 0.300
kg
EH150, EH160, EH175, EH210, EG160
PR210-1
AF190, AF205
1SFN094900R1000
0.440
EH250, EH260, EH300
EH370, EH550, EG315 AF265, AF305, AF370 PR300-1 1SFN095300R1000 1 1 0.560
AF400, AF460, AF580
1SFN095700R1000
0.900
PR460-1
PR146-1
EH700, EH800 AF750 PR750-1 1SFN096100R1000 1 0.500
OKYM150, OKYM175 AF190 PR185-2 1SFN095100R1001 1 0.500
OKYM200, OKYM250 AF265, AF305, AF370 PR300-2 1SFN095300R1001 1 0.500
OKYM315 AF400, AF460 PR400-2 1SFN095700R1002 1 0.820
OKYM400 AF400, AF460 PR460-2 1SFN095700R1001 1 0.800
OKYM500 AF580 PR580-2 1SFN096100R1002 1 0.700
EH550, EG630, OKYM630 AF580, AF750 PR750-2 1SFN096100R1001 1 1.100

l Dimensions (mm)
L
Type of the plate Dimensions Fixing holes
L I h mm
PR146-1 150 90 15 4 x ø 6.5
E2119D PR210-1 200 132 11.5 4 x ø 7
h
PR300-1 200 172 11.5 4 x ø 7
PR460-1 278 198 11.5 4 x ø 7
PR750-1 283 244 11.5 4 x ø 7
PR185-2 202 152 11.2 4 x ø 11
PR300-2 202 152 11.2 4 x ø 11
PR400-2 278 151 11.5 4 x ø 11
PR460-2 278 176 11.5 4 x ø 11
PR580-2 283 176 11.5 4 x ø 11
PR750-2 283 255 11.5 4 x ø 14
Fixing holes according to the plate types
