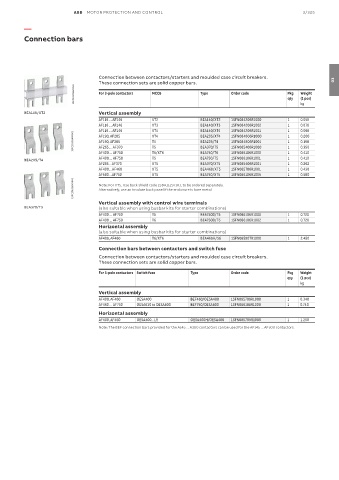

Connection bars

Connection between contactors/starters and moulded case circuit breakers.
These connection sets are solid copper bars. 03
1SFC101061V0001 For 3-pole contactors MCCB Type Order code Pkg Weight
(1 pce)
qty
BEA140/XT2 Vertical assembly kg

AF116 ... AF146 XT2 BEA140/XT2 1SFN084206R1000 1 0.058
AF116 ... AF146 XT3 BEA140/XT3 1SFN084206R1002 1 0.070
AF116 ... AF146 XT4 BEA140/XT4 1SFN084206R1001 1 0.068
1SFC101064V0001 AF190, AF205 XT4 BEA205/XT4 1SFN084806R1000 1 1 1 0.200
1SFN084806R1001
0.190
T4
BEA205/T4
AF190, AF205
BEA370/T5
0.350
1SFN085406R1000
T5
AF265 ... AF370
AF400 ... AF750 T6/XT6 BEA750/T6 1SFN086106R1000 1 0.410
AF400 ... AF750 T5 BEA750/T5 1SFN086106R1001 1 0.410
BEA205/T4
AF265…AF370 XT5 BEA370/XT5 1SFN085406R1001 1 0.262
AF400…AF460 XT5 BEA460/XT5 1SFN085706R1001 1 0.430
AF580…AF750 XT5 BEA750/XT5 1SFN086106R1005 1 0.580
1SFC101065V0001 Note: For XT5, Use back shield code 1SDA112971R1, to be ordered separately.
Alternatively, use an insulate back panel if the enclosure is bare metal
Vertical assembly with control wire terminals
BEA370/T5 (also suitable when using busbar kits for starter combinations)
AF400 ... AF750 T5 BEA750D/T5 1SFN086106R1003 1 0.720
AF400 ... AF750 T6 BEA750D/T6 1SFN086106R1002 1 0.720
Horizontal assembly
(also suitable when using busbar kits for starter combinations)
AF400, AF460 T6/XT6 BEA460H/S6 1SFN085907R1000 1 2.450
Connection bars between contactors and switch fuse
Connection between contactors/starters and moulded case circuit breakers.
These connection sets are solid copper bars.
For 3-pole contactors Switch fuse Type Order code Pkg Weight
qty (1 pce)
kg
Vertical assembly
AF400, AF460 OESA400 BEF460/OESA400 1SFN085708R1000 1 0.340
AF460 ... AF750 OESA630 to OESA800 BEF750/OESA800 1SFN086108R1000 1 0.740
Horizontal assembly
AF400, AF460 OESA400...LR OESA460H/OESA400 1SFN085709R1000 1 1.250
Note: The BEF connection bars provided for the A145 ... A300 contactors can be used for the AF145 ... AF300 contactors.
