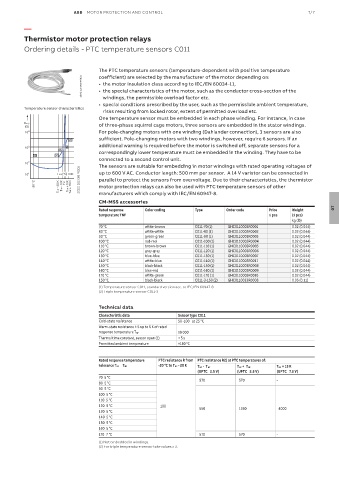

ABB  MOTOR PROTECTION AND CONTROL                                                 7/7

          —

          Thermistor motor protection relays
          Ordering details - PTC temperature sensors C011



                                    The PTC temperature sensors (temperature-dependent with positive temperature
                                    coefficient) are selected by the manufacturer of the motor depending on:
                              1SVC 110 000 F0531  •   the motor insulation class according to IEC/EN 60034-11,
                                    •   the special characteristics of the motor, such as the conductor cross-section of the
                                     windings, the permissible overload factor etc.
                                    •   special conditions prescribed by the user, such as the permissible ambient temperature,
          Temperature sensor characteristics
                                     risks resulting from locked rotor, extent of permitted overload etc.
                                    One temperature sensor must be embedded in each phase winding. For instance, in case
          RPTC                      of three-phase squirrel cage motors, three sensors are embedded in the stator windings.
          [ ]
          10 4                      For pole-changing motors with one winding (Dahlander connection), 3 sensors are also
                                    sufficient. Pole-changing motors with two windings, however, require 6 sensors. If an
                                    additional warning is required before the motor is switched off, separate sensors for a
          10 3
                                    correspondingly lower temperature must be embedded in the winding. They have to be
                                    connected to a second control unit.
          10 2                      The sensors are suitable for embedding in motor windings with rated operating voltages of

          10 1       TPTC [°C]      up to 600 V AC. Conductor length: 500 mm per sensor.  A 14 V varistor can be connected in
                                    parallel to protect the sensors from overvoltage. Due to their characteristics, the thermistor
             -20 °C   TNF - 20 K  TNF - 5 K  TNF  TNF + 5 K  TNF + 15 K  2CDC 252 068 F0208  motor protection relays can also be used with PTC temperature sensors of other
                                    manufacturers which comply with IEC/EN 60947-8.
                                    CM-MSS accessories
                                    Rated response   Color coding     Type       Order code     Price   Weight        07
                                    temperature TNF                                             1 pce   (1 pce)
                                                                                                        kg (lb)
                                    70 °C           white-brown       C011-70 (1)  GHC0110003R0001      0.02 (0.044)
                                    80 °C           white-white       C011-80 (1)  GHC0110003R0002      0.02 (0.044)
                                    90 °C           green-green       C011-90 (1)  GHC0110003R0003      0.02 (0.044)
                                    100 °C          red-red           C011-100 (1)  GHC0110003R0004     0.02 (0.044)
                                    110 °C          brown-brown       C011-110 (1)  GHC0110003R0005     0.02 (0.044)
                                    120 °C          gray-gray         C011-120 (1)  GHC0110003R0006     0.02 (0.044)
                                    130 °C          blue-blue         C011-130 (1)  GHC0110003R0007     0.02 (0.044)
                                    140 °C          white-blue        C011-140 (1)  GHC0110003R0011     0.02 (0.044)
                                    150 °C          black-black       C011-150 (1)  GHC0110003R0008     0.02 (0.044)
                                    160 °C          blue-red          C011-160 (1)  GHC0110003R0009     0.02 (0.044)
                                    170 °C          white-green       C011-170 (1)  GHC0110003R0010     0.02 (0.044)
                                    150 °C          black-black       C011-3-150 (2)  GHC0110033R0008   0.05 (0.11)
                                    (1) Temperature sensor C011, standard version acc. to IEC/EN 60947-8
                                    (2) Triple temperature sensor C011-3

                                    Technical data
                                    Characteristic data         Sensor type C011
                                    Cold-state resistance       50 -100 q at 25 °C
                                    Warm-state resistance ± 5 up to 6 K of rated
                                    response temperature T NF   10 000 q
                                    Thermal time constant, sensor open (1)  < 5 s
                                    Permitted ambient temperature  +180 °C

                                    Rated response temperature q   PTC resistance R from  PTC resistance R2) at PTC temperatures of:
                                                         -20 °C to T NF - 20 K
                                    tolerance T NF q qT NF            T NF - qT NF   T NF + qT NF   T NF + 15 K
                                                                      (UPTC q 2.5 V)  (UPTC q 2.5 V)  (UPTC q 7.5 V)
                                    70 q5 °C                          q 570 q       q 570 q       -
                                    80 q5 °C
                                    90 q5 °C
                                    100 q5 °C
                                    110 q5 °C
                                    120 q5 °C            q 100 q      q 550 q       q 1330 q      q 4000 q
                                    130 q5 °C
                                    140 q5 °C
                                    150 q5 °C
                                    160 q5 °C
                                    170 q7 °C                         q 570 q       q 570 q       -
                                    (1) Not embedded in windings.
                                    (2) For triple temperature sensor take values x 3.
