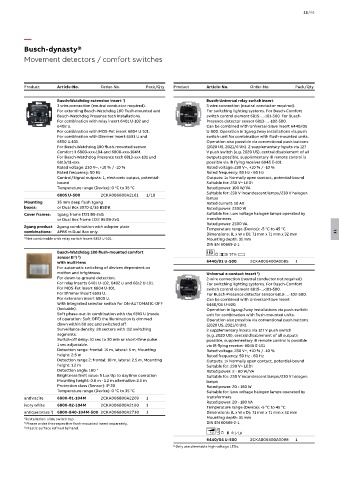

Page 1167 - Din prodcuts 2020

11/61

—
Busch-dynasty®
Movement detectors / comfort switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Busch-Watchdog extension insert ) Busch-Universal relay switch insert
1
3 wire connection (neutral conductor required). 3 wire connection (neutral conductor required).
For extending Busch-Watchdog 180 flush-mounted and For switching lighting systems. For Busch-Comfort
Busch-Watchdog Presence tech installations. switch control element 6815-...-101-500. For Busch-
For combination with relay insert 6401 U-102 and Presence detector sensor 6813-…-102-500.
6402 U. Can be combined with Universal-Slave insert 6440/05
For combination with MOS-Fet insert 6804 U-101. U-500. Operation in 1gang 2way installations via push
For combination with Dimmer insert 6593 U and switch-unit for combination with flush-mounted units.
6550 U-101. Operation also possible via conventional push buttons
For Busch-Watchdog 180 flush-mounted sensor (2020 US, 2021/6 UK). 2 supplementary inputs via 127
Comfort II 6800-xxx-104 and 6800-xxx-104M. V push switch (e.g. 2020 US), central disablement of all
For Busch-Watchdog Presence tech 6813-xxx-101 und outputs possible, supplementary IR remote control is
6813/11-xxx. possible via IR flying receiver 6045 E-101
Rated voltage: 230 V~, +10 % / -10 % Rated voltage: 230 V~, +10 % / -10 %
Rated frequency: 50 Hz Rated frequency: 50 Hz - 60 Hz
Control/Signal outputs: 1, electronic output, potential- Outputs: 1x Normally open contact, potential-bound
bound Suitable for: 230 V~ LEDi
Temperature range (Device): 0 °C to 35 °C Rated power: 100 W/VA
Suitable for: 230 V incandescent lamps/230 V halogen
6805 U-500 2CKA006800A2161 1/10
lamps
Mounting 35 mm deep flush 1gang Rated current: 10 AX
boxes: or Dual Box 3070-2/35 BSDB. Rated power: 2300 W
Cover frames: 1gang frame 1721 BS-2xG Suitable for: Low voltage halogen lamps operated by
or Dual Box frame 1722 BSDB-2xG. transformers.
Rated power: 2300 VA
2gang product 2gang combination with adapter plate Temperature range (Device): -5 °C to 45 °C
combinations: APBS in Dual Box only. 11
Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
1) Not combinable with relay switch insert 6812 U-101.
Mounting depth: 31 mm
DIN EN 60669-2-1
Busch-Watchdog 180 flush-mounted comfort LEDi
1
2
sensor II ) )
with multi-lens 6440/01 U-500 2CKA006400A0085 1
For automatic switching of devices dependent on
motion and brightness. Universal e-contact insert ) 1
For down-to-ground detection. 2-wire connection (neutral conductor not required)
For relay inserts 6401 U-102, 6402 U and 6812 U-101. For switching lighting systems. For Busch-Comfort
For MOS-Fet insert 6804 U-101. switch control element 6815-...-101-500.
For Dimmer insert 6593 U. For Busch-Presence detector sensor 6813-…-102-500.
For extension insert 6805 U. Can be combined with Universal-Slave insert
With integrated selector switch for ON-AUTOMATIC-OFF 6440/05 U-500.
(lockable). Operation in 1gang 2way installations via push switch-
Soft phase-out: In combination with the 6593 U (mode unit for combination with flush-mounted units.
of operation: Soft OFF) the illumination is dimmed Operation also possible via conventional push buttons
down within 60 sec and switched off. (2020 US, 2021/6 UK).
Surveillance density: 28 sectors with 112 switching 2 supplementary inputs via 127 V push switch
segments. (e.g. 2020 US), central disablement of all outputs
Switch-off delay: 10 sec to 30 min or short-time pulse possible, supplementary IR remote control is possible
1 sec adjustable. via IR flying receiver 6045 E-101
Detection range: frontal: 15 m, lateral: 5 m, Mounting Rated voltage: 230 V~, +10 % / -10 %
height: 2.5 m Rated frequency: 50 Hz - 60 Hz
Detection range 2: frontal: 10 m, lateral: 2.5 m, Mounting Outputs: 1x Normally open contact, potential-bound
height: 1.2 m Suitable for: 230 V~ LEDi
Detection angle: 180 ° Rated power: 2 - 80 W/VA
Brightness limit value: 5 Lux Up to daytime operation Suitable for: 230 V incandescent lamps/230 V halogen
Mounting height: 0.8 m - 1.2 m alternative: 2.5 m lamps
Protection class (Sensor): IP 20 Rated power: 20 - 180 W
Temperature range (Device): 0 °C to 35 °C Suitable for: Low voltage halogen lamps operated by
anthracite 6800-81-104M 2CKA006800A2269 1 transformers.
Rated power: 20 - 180 VA
ivory white 6800-82-104M 2CKA006800A2100 1 Temperature range (Device): -5 °C to 45 °C
antique brass ) 6800-840-104M-500 2CKA006800A2730 1 Dimensions: (L x W x D): 71 mm x 71 mm x 32 mm
3
1) installation: slide switch top. Mounting depth: 31 mm
2) Please order the respective flush-mounted insert separately. DIN EN 60669-2-1
3) Plastic surface refined by hand.

6440/04 U-500 2CKA006400A0088 1
1) Only use dimmable high voltage LEDs.
