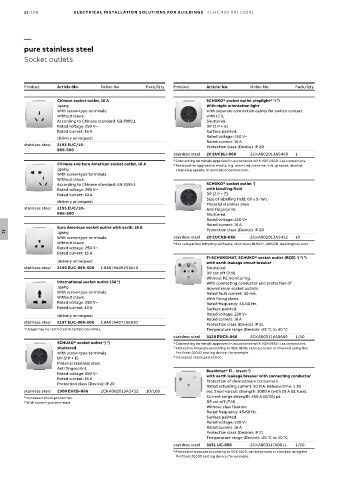

11/108 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
pure stainless steel
Socket outlets

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Chinese socket outlet, 16 A SCHUKO® socket outlet steplight® ) ) 2
1gang With night orientation light
With screw-type terminals. with separate connection cables for switch contact.
Without claws. with LED,
According to Chinese standard: GB 2099.1 Shuttered.
Rated voltage: 250 V~ DP (2 P + E)
Rated current: 16 A Surface painted.
delivery on request Rated voltage: 250 V~
stainless steel 2193 EUC/16- Rated current: 16 A
Protection class (Device): IP 20
866-500
stainless steel 20 EUCBLI-866 2CKA002013A5460 1
1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
Chinese and Euro American socket outlet, 10 A 2) Resistant to aggressive media, e.g. ammonia, benzine, oils, greases, alcohol,
1gang cleansing agents, in normal concentrations.
With screw-type terminals.
Without claws.
1
According to Chinese standard: GB 2099.1 SCHUKO® socket outlet )
Rated voltage: 250 V~ with labelling field
Rated current: 10 A DP (2 P + E)
Size of labelling field: 60 x 9 mm.
delivery on request
Material stainless steel.
stainless steel 2195 EUC/10- Anti fingerprint.
866-500 Shuttered.
Rated voltage: 250 V~
Rated current: 16 A
Euro American socket outlet with earth, 16 A Protection class (Device): IP 20
1gang
11
With screw-type terminals. stainless steel 20 EUCNB-866 2CKA002013A5432 10
Without claws. 1) For compatible lettering software, visit www.BUSCH-JAEGER-labelingtool.com.
Rated voltage: 250 V~
Rated current: 16 A
FI-SCHUKOMAT, SCHUKO® socket outlet (RCD) ) ) )
1
3
2
delivery on request with earth leakage circuit breaker
stainless steel 2196 EUC-866-500 CBA019A082S6010 Shuttered.
DP cut off (P,N)
Without PE monitoring.
International socket outlet 13A ) With connecting conductor and protection of
1
1gang downstream socket outlets.
With screw-type terminals. Rated fault current: 30 mA.
Without claws. With fixing claws.
Rated voltage: 250 V~ Rated frequency: 45-60 Hz.
Rated current: 13 A Surface painted.
delivery on request Rated voltage: 230 V~
Rated current: 16 A
stainless steel 2197 EUC-866-500 CBA019A071S6010
Protection class (Device): IP 21
1) Usage may be restricted in certain countries. Temperature range (Device): -25 °C to 40 °C
stainless steel 3120 EUCB-866 2CKA003116A0669 1/10
SCHUKO® socket outlet ) ) 1) Connecting terminals approved in accordance with VDE 0620-1 as connectors.
1
2
shuttered 2) Protective measure according to VDE 0100; can be proven or checked using the
With screw-type terminals. Profitest 0100S testing device, for example.
DP (2 P + E) 3) Increased shock protection .
Material stainless steel.
Anti fingerprint. 1
Rated voltage: 250 V~ Buschmat® FI - Insert )
Rated current: 16 A with earth leakage breaker with connecting conductor
Protection class (Device): IP 20 Protection of downstream consumers.
Rated actuating current: 30 mA. Release time: ≤ 30
stainless steel 2300 EUCB-866 2CKA002013A5452 10/100 ms. Short-circuit strength: 3000 A (with 25 A GL fuse).
1) Increased shock protection . Current surge strength: 250 A (8/20) µs.
2) With screw-type terminals DP cut off (P,N)
Without claw fixation.
Rated frequency: 45-60 Hz.
Surface painted.
Rated voltage: 230 V~
Rated current: 16 A
Protection class (Device): IP 21
Temperature range (Device): -25 °C to 40 °C
stainless steel 3151 UC-866 2CKA003117A0011 1/10
1) Protective measure according to VDE 0100; can be proven or checked using the
Profitest 0100S testing device, for example.
