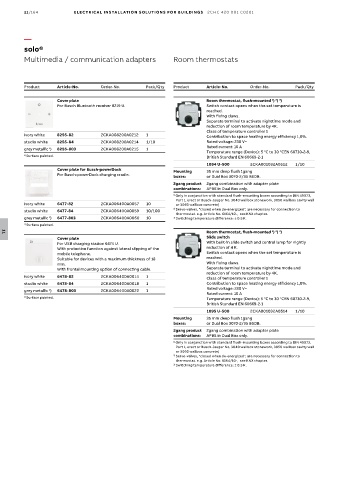

11/164 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
solo®
Multimedia / communication adapters Room thermostats

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

1
Cover plate Room thermostat, flush-mounted ) ) ) 3
2
For Busch Bluetooth receiver 8219 U. Switch contact opens when the set temperature is
reached.
With fixing claws.
Separate terminal to activate nighttime mode and
reduction of room temperature by 4K.
Class of temperature controller 1
ivory white 8255-82 2CKA008200A0212 1 Contribution to space heating energy efficiency 1,0%.
studio white 8255-84 2CKA008200A0214 1/10 Rated voltage: 230 V~
Rated current: 10 A
grey metallic ) 8255-803 2CKA008200A0215 1
1
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9,
1) Surface painted.
British Standard EN 60669-2-1
1094 U-500 2CKA001032A0512 1/10
Cover plate for Busch-powerDock Mounting 35 mm deep flush 1gang
For Busch-powerDock charging cradle. boxes: or Dual Box 3070-2/35 BSDB.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
ivory white 6477-82 2CKA006400A0057 10 or 3060 wallbox concrete)
studio white 6477-84 2CKA006400A0059 10/100 2) Servo-valves, "closed when de-energized", are necessary for connection to
thermostat. e.g. Article No. 6164/10-, see KNX chapter.
grey metallic ) 6477-803 2CKA006400A0060 10 3) Switching temperature difference: ± 0.5 K.
1
1) Surface painted.
Room thermostat, flush-mounted ) ) ) 3
1
2
11
Cover plate Slide switch
For USB charging station 6474 U. With built-in slide switch and control lamp for nightly
With protective function against lateral slipping of the reduction of 4 K.
mobile telephone. Switch contact opens when the set temperature is
Suitable for devices with a maximum thickness of 18 reached.
mm. With fixing claws.
With frontal mounting option of connecting cable. Separate terminal to activate nighttime mode and
reduction of room temperature by 4K.
ivory white 6478-82 2CKA006400A0014 1 Class of temperature controller 1
studio white 6478-84 2CKA006400A0018 1 Contribution to space heating energy efficiency 1,0%.
grey metallic ) 6478-803 2CKA006400A0022 1 Rated voltage: 230 V~
1
Rated current: 10 A
1) Surface painted.
Temperature range (Device): 5 °C to 30 °CEN 60730-2-9,
British Standard EN 60669-2-1
1095 U-500 2CKA001032A0514 1/10
Mounting 35 mm deep flush 1gang
boxes: or Dual Box 3070-2/35 BSDB.
2gang product 2gang combination with adapter plate
combinations: APBS in Dual Box only.
1) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
2) Servo-valves, "closed when de-energized", are necessary for connection to
thermostat. e.g. Article No. 6164/10-, see KNX chapter.
3) Switching temperature difference: ± 0.5 K.
