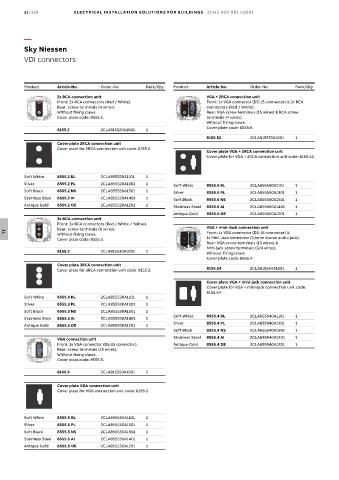

11/326 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Sky Niessen
VDI connectors

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2x RCA connection unit VGA + 2RCA connection unit
Front: 2x RCA connectors (Red / White). Front: 1x VGA connector (DE-15 connector) & 2x RCA
Rear: screw terminals (4 wires). connectors (Red / White).
Without fixing claws. Rear: VGA screw terminals (15 wires) & RCA screw
Cover plate code: 8555.2. terminals (4 wires).
Without fixing claws.
Cover plate code: 8555.6.
8155.2 2CLA815520A1001 1
8155.52 2CLA815552A1001 1
Cover plate 2RCA connection unit
Cover plate for 2RCA connection unit code: 8155.2.
Cover plate VGA + 2RCA connection unit
Cover plate for VGA + 2RCA connection unit code: 8155.52.

Soft White 8555.2 BL 2CLA855520A1101 1
Silver 8555.2 PL 2CLA855520A1301 1 Soft White 8555.6 BL 2CLA855560A1101 1
Soft Black 8555.2 NS 2CLA855520A1501 1 Silver 8555.6 PL 2CLA855560A1301 1
Stainless Steel 8555.2 AI 2CLA855520A1401 1 Soft Black 8555.6 NS 2CLA855560A1501 1
Antique Gold 8555.2 OE 2CLA855520A1201 1 Stainless Steel 8555.6 AI 2CLA855560A1401 1
Antique Gold 8555.6 OE 2CLA855560A1201 1
3x RCA connection unit
Front: 3x RCA connectors (Red / White / Yellow).
Rear: screw terminals (6 wires). VGA + mini-Jack connection unit
Without fixing claws. Front: 1x VGA connector (DE-15 connector) &
11
Cover plate code: 8555.3. 1x Mini-Jack connector (3,5mm stereo audio jack).
Rear: VGA screw terminals (15 wires) &
Mini-jack screw terminals (3/4 wires).
8155.3 2CLA815530A1001 1 Without fixing claws.
Cover plate code: 8555.4.
Cover plate 3RCA connection unit
Cover plate for 3RCA connection unit code: 8155.3. 8155.54 2CLA815554A1001 1
Cover plate VGA + mini-jack connection unit
Cover plate for VGA + mini-jack connection unit code:
8155.54.
Soft White 8555.3 BL 2CLA855530A1101 1
Silver 8555.3 PL 2CLA855530A1301 1
Soft Black 8555.3 NS 2CLA855530A1501 1
Soft White 8555.4 BL 2CLA855540A1101 1
Stainless Steel 8555.3 AI 2CLA855530A1401 1
Silver 8555.4 PL 2CLA855540A1301 1
Antique Gold 8555.3 OE 2CLA855530A1201 1
Soft Black 8555.4 NS 2CLA855540A1501 1
VGA connection unit Stainless Steel 8555.4 AI 2CLA855540A1401 1
Front: 1x VGA connector (DE-15 connector). Antique Gold 8555.4 OE 2CLA855540A1201 1
Rear: screw terminals (15 wires).
Without fixing claws.
Cover plate code: 8555.5.

8155.5 2CLA815550A1001 1

Cover plate VGA connection unit
Cover plate for VGA connection unit code: 8155.5.

Soft White 8555.5 BL 2CLA855550A1101 1
Silver 8555.5 PL 2CLA855550A1301 1
Soft Black 8555.5 NS 2CLA855550A1501 1
Stainless Steel 8555.5 AI 2CLA855550A1401 1
Antique Gold 8555.5 OE 2CLA855550A1201 1
