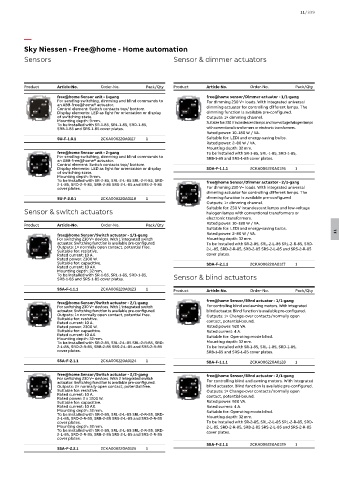

Page 1445 - Din prodcuts 2020

11/339

—
Sky Niessen - Free@home - Home automation
Sensors Sensor & dimmer actuators

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

free@home Sensor unit - 1-gang free@home sensor/Dimmer actuator - 1/1-gang
For sending switching, dimming and blind commands to For dimming 230 V~ loads. With integrated universal
an ABB-free@home® actuator.
Control element: Switch contacts top/ bottom. dimming actuator for controlling different lamps. The
Display elements: LED as light for orientation or display dimming function is available pre-configured.
of switching state. Outputs: 1× dimming channel.
Mounting depth: 9 mm. Suitable for: 230 V incandescent lamps and low-voltage halogen lamps
To be installed with SR-1-85, SRL-1-85, SRD-1-85,
SRB-1-85 and SRS-1-85 cover plates. with conventional transformers or electronic transformers.
Rated power: 10–180 W / VA.
SU-F-1.0.1 2CKA006220A0117 1 Suitable for: LEDi and energy-saving bulbs.
Rated power: 2–80 W / VA.
Mounting depth: 32 mm.
free@home Sensor unit - 2-gang To be installed with SR-1-85, SRL-1-85, SRD-1-85,
For sending switching, dimming and blind commands to SRB-1-85 and SRS-1-85 cover plates.
an ABB-free@home® actuator.
Control element: Switch contacts top/ bottom.
Display elements: LED as light for orientation or display SDA-F-1.1.1 2CKA006220A0126 1
of switching state.
Mounting depth: 9 mm.
To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD- free@home Sensor/Dimmer actuator - 2/1-gang
2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85
cover plates. For dimming 230 V~ loads. With integrated universal
dimming actuator for controlling different lamps. The
SU-F-2.0.1 2CKA006220A0118 1 dimming function is available pre-configured
Outputs: 1× dimming channel.
Suitable for: 230 V incandescent lamps and low-voltage
Sensor & switch actuators halogen lamps with conventional transformers or
electronic transformers.
Product Article-No. Order-No. Pack/Qty Rated power: 10–180 W / VA.
Suitable for: LEDi and energy-saving bulbs.
free@home Sensor/Switch actuator - 1/1-gang Rated power: 2–80 W / VA. 11
For switching 230 V~ devices. With 1 integrated switch Mounting depth: 32 mm.
actuator. Switching function is available pre-configured. To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD-
Outputs: 1× normally open contact, potential free. 2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85
Suitable for: resistive.
Rated current: 10 A. cover plates.
Rated power: 2300 W.
Suitable for: capacitive. SDA-F-2.1.1 2CKA006220A0127 1
Rated current: 10 AX.
Mounting depth: 32 mm.
To be installed with SR-1-85, SRL-1-85, SRD-1-85, Sensor & blind actuators
SRB-1-85 and SRS-1-85 cover plates.
SSA-F-1.1.1 2CKA006220A0123 1 Product Article-No. Order-No. Pack/Qty
free@home Sensor/Switch actuator - 2/1-gang free@home Sensor/Blind actuator - 1/1-gang
For switching 230 V~ devices. With 1 integrated switch For controlling blind and awning motors. With integrated
actuator. Switching function is available pre-configured. blind actuator. Blind function is available pre-configured.
Outputs: 1× normally open contact, potential free. Outputs: 1× Change-over contacts/normally open
Suitable for: resistive.
Rated current: 10 A. contact, potential-bound.
Rated power: 2300 W. Rated power: 920 VA.
Suitable for: capacitive. Rated current: 4 A.
Rated current: 10 AX.
Mounting depth: 32 mm. Suitable for: Operating mode blind.
To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD- Mounting depth: 32 mm.
2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85 To be installed with SR-1-85, SRL-1-85, SRD-1-85,
cover plates. SRB-1-85 and SRS-1-85 cover plates.
SSA-F-2.1.1 2CKA006220A0124 1 SBA-F-1.1.1 2CKA006220A0128 1

free@home Sensor/Switch actuator - 2/2-gang free@home Sensor/Blind actuator - 2/1-gang
For switching 230 V~ devices. With 2 integrated switch
actuator. Switching function is available pre-configured. For controlling blind and awning motors. With integrated
Outputs: 2× normally open contact, potential free. blind actuator. Blind function is available pre-configured.
Suitable for: resistive. Outputs: 1× Change-over contacts/normally open
Rated current: 10 A. contact, potential-bound.
Rated power: 2 x 1200 W.
Suitable for: capacitive. Rated power: 920 VA.
Rated current: 10 AX. Rated current: 4 A.
Mounting depth: 32 mm. Suitable for: Operating mode blind.
To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD-
2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85 Mounting depth: 32 mm.
cover plates. To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD-
Mounting depth: 32 mm. 2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85
To be installed with SR-2-85, SRL-2-L-85 SRL-2-R-85, SRD- cover plates.
2-L-85, SRD-2-R-85, SRB-2-85 SRS-2-L-85 and SRS-2-R-85
cover plates.
SBA-F-2.1.1 2CKA006220A0129 1
SSA-F-2.2.1 2CKA006220A0125 1
