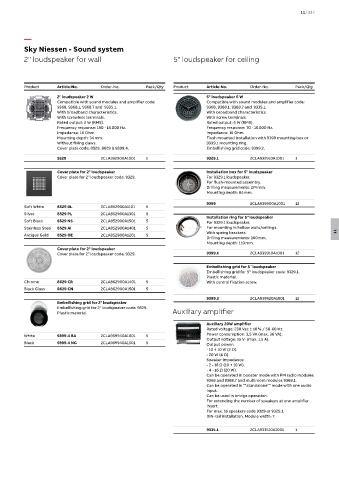

Page 1443 - Din prodcuts 2020

11/337

—
Sky Niessen - Sound system
2" loudspeaker for wall 5" loudspeaker for ceiling

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

2" loudspeaker 2 W 5" loudspeaker 6 W
Compatible with sound modules and amplifier code: Compatible with sound modules and amplifier code:
9368, 9368.1, 9368.7 and 9335.1. 9368, 9368.1, 9368.7 and 9335.1.
With broadband characteristics. With broadband characteristics.
With screwless terminals. With screw terminals.
Rated output: 2 W (RMS). Rated output: 6 W (RMS).
Frequency response: 150 - 16.000 Hz. Frequency response: 70 - 10.000 Hz.
Impedance: 16 Ohm. Impedance: 16 Ohm.
Mounting depth: 34 mm. Flush mounted installation with 9399 mounting box or
Without fixing claws. 9399.1 mounting ring.
Cover plate code: 8529, 8629 & 9399.4. Embellishing grid code: 9399.2.
9329 2CLA932900A1001 1 9329.1 2CLA932910A1001 1

Cover plate for 2" loudspeaker Installation box for 5" loudspeaker
Cover plate for 2" loudspeaker code: 9329. For 9329.1 loudspeaker.
For flush-mounted assembly.
Drilling measurements: 174 mm.
Mounting depth: 84 mm.
9399 2CLA939900A1001 12
Soft White 8529 BL 2CLA852900A1101 5
Silver 8529 PL 2CLA852900A1301 5
Installation ring for 5" loudspeaker
Soft Black 8529 NS 2CLA852900A1501 5 For 9329.1 loudspeaker.
Stainless Steel 8529 AI 2CLA852900A1401 5 For mounting in hollow walls/ceilings.
With spring brackets. 11
Antique Gold 8529 OE 2CLA852900A1201 5
Drilling measurements: 160 mm.
Mounting depth: 110 mm.
Cover plate for 2" loudspeaker
Cover plate for 2" loudspeaker code: 9329. 9399.1 2CLA939910A1001 12
Embellishing grid for 5" loudspeaker
Embellishing grid for 5" loudspeaker code: 9329.1.
Plastic material.
Chrome 8629 CR 2CLA862900A1401 5 With central fixation screw.
Black Glass 8629 CN 2CLA862900A1501 5
9399.2 2CLA939920A1001 12
Embellishing grid for 2" loudspeaker
Embellishing grid for 2" loudspeaker code: 9329.
Plastic material. Auxiliary amplifier
Auxiliary 20W amplifier
Rated voltage: 230 Vac ± 10 % / 50-60 Hz.
White 9399.4 BA 2CLA939940A1001 5 Power consumption: 3,5 VA (max. 36 VA).
Output voltage: 15 V- (max. 1,5 A).
Black 9399.4 NG 2CLA939940A1501 5 Output power:
- 10 + 10 W (2 Ω).
- 20 W (4 Ω).
Speaker impedance:
- 2 - 16 Ω (10 + 10 W).
- 4 - 16 Ω (20 W).
Can be operated in booster mode with FM radio modules
9368 and 9368.7 and multiroom modules 9368.1.
Can be operated in “”standalone”” mode with one audio
input.
Can be used in bridge operation.
For extending the number of speakers at one amplifier
insert.
For max. 16 speakers code 9329 or 9329.1.
DIN-rail installation. Module width: 7.

9335.1 2CLA933510A1001 1
