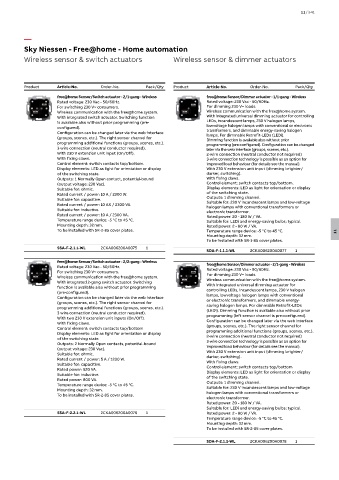

Page 1447 - Din prodcuts 2020

11/341

—
Sky Niessen - Free@home - Home automation
Wireless sensor & switch actuators Wireless sensor & dimmer actuators

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

free@home Sensor/Switch actuator - 2/1-gang - Wireless free@home Sensor/Dimmer actuator - 1/1-gang - Wireless
Rated voltage: 230 Vac - 50/60Hz. Rated voltage: 230 Vac - 50/60Hz.
For switching 230 V~ consumers. For dimming 230 V~ loads.
Wireless communication with the free@home system. Wireless communication with the free@home system.
With integrated switch actuator. Switching function With integrated universal dimming actuator for controlling
is available also without prior programming (pre- LEDs, incandescent lamps, 230 V halogen lamps,
configured). lowvoltage halogen lamps with conventional or electronic
Configuration can be changed later via the web interface transformers, and dimmable energy-saving halogen
lamps. For dimmable Retrofit-LEDs (LEDi).
(groups, scenes, etc.). The right sensor channel for Dimming function is available also without prior
programming additional functions (groups, scenes, etc.). programming (pre-configured). Configuration can be changed
3 wire connection (neutral conductor required). later via the web interface (groups, scenes, etc.).
With 230 V extension unit input (On/Off). 2-wire connection (neutral conductor not required)
With fixing claws. 3-wire connection technology is possible as an option for
Control element: switch contacts top/bottom. improved load behaviour (for details see the manual).
Display elements: LED as light for orientation or display With 230 V extension unit input (dimming brighter/
of the switching state. darker, switching).
Outputs: 1 Normally Open contact, potential-bound With fixing claws.
(output voltage: 230 Vac). Control element: switch contacts top/bottom.
Suitable for: ohmic. Display elements: LED as light for orientation or display
Rated current / power: 10 A / 2300 W. of the switching state.
Suitable for: capacitive. Outputs: 1 dimming channel.
Rated current / power: 10 AX / 2300 VA. Suitable for: 230 V incandescent lamps and low-voltage
halogen lamps with conventional transformers or
Suitable for: inductive. electronic transformer.
Rated current / power: 10 A / 2300 VA. Rated power: 20 - 180 W / VA.
Temperature range device: -5 °C to 45 °C. Suitable for: LEDi and energy-saving bulbs; typical.
Mounting depth: 32 mm. Rated power: 2 - 80 W / VA.
To be installed with SR-2-85 cover plates. Temperature range device: -5 °C to 45 °C. 11
Mounting depth: 32 mm.
To be installed with SR-1-85 cover plates.
SSA-F-2.1.1-WL 2CKA006200A0075 1
SDA-F-1.1.1-WL 2CKA006200A0077 1
free@home Sensor/Switch actuator - 2/2-gang - Wireless
Rated voltage: 230 Vac - 50/60Hz. free@home Sensor/Dimmer actuator - 2/1-gang - Wireless
For switching 230 V~ consumers. Rated voltage: 230 Vac - 50/60Hz.
Wireless communication with the free@home system. For dimming 230 V~ loads.
With integrated 2-gang switch actuator. Switching Wireless communication with the free@home system.
function is available also without prior programming With integrated universal dimming actuator for
(pre-configured). controlling LEDs, incandescent lamps, 230 V halogen
Configuration can be changed later via the web interface lamps, lowvoltage halogen lamps with conventional
(groups, scenes, etc.). The right sensor channel for or electronic transformers, and dimmable energy-
programming additional functions (groups, scenes, etc.). saving halogen lamps. For dimmable Retrofit-LEDs
3 wire connection (neutral conductor required). (LEDi). Dimming function is available also without prior
With two 230 V extension unit inputs (On/Off). programming (left sensor channel is pre-configured).
With fixing claws. Configuration can be changed later via the web interface
Control element: switch contacts top/bottom (groups, scenes, etc.). The right sensor channel for
Display elements: LED as light for orientation or display programming additional functions (groups, scenes, etc.).
of the switching state. 2-wire connection (neutral conductor not required)
Outputs: 2 Normally Open contacts, potential-bound 3-wire connection technology is possible as an option for
(output voltage: 230 Vac). improved load behaviour (for details see the manual).
Suitable for: ohmic. With 230 V extension unit input (dimming brighter/
Rated current / power: 5 A / 1200 W. darker, switching).
Suitable for: capacitive. With fixing claws.
Rated power: 920 VA. Control element: switch contacts top/bottom
Suitable for: inductive. Display elements: LED as light for orientation or display
Rated power: 800 VA. of the switching state.
Temperature range device: -5 °C to 45 °C. Outputs: 1 dimming channel.
Mounting depth: 32 mm. Suitable for: 230 V incandescent lamps and low-voltage
To be installed with SR-2-85 cover plates. halogen lamps with conventional transformers or
electronic transformer.
Rated power: 20 - 180 W / VA.
Suitable for: LEDi and energy-saving bulbs; typical.
SSA-F-2.2.1-WL 2CKA006200A0076 1 Rated power: 2 - 80 W / VA.
Temperature range device: -5 °C to 45 °C.
Mounting depth: 32 mm.
To be installed with SR-2-85 cover plates.

SDA-F-2.1.1-WL 2CKA006200A0078 1
