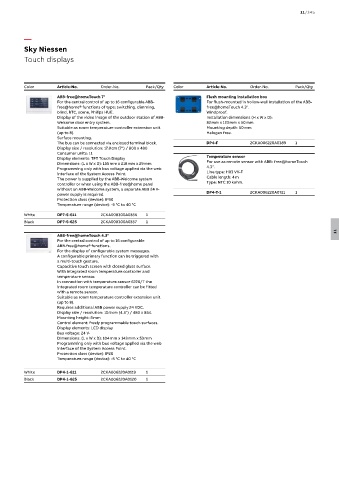

Sky Niessen
Touch displays

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

ABB-free@homeTouch 7" Flush mounting installation box
For the central control of up to 16 configurable ABB- For flush-mounted in hollow-wall installation of the ABB-
free@home® functions of type: switching, dimming, free@homeTouch 4.3".
blind, RTC, scene, Philips HUE. Windproof.
Display of the video image of the outdoor station of ABB- Installation dimensions (H x W x D):
Welcome door entry system. 82 mm x 123 mm x 50 mm
Suitable as room temperature controller extension unit Mounting depth: 50 mm
(up to 8). Halogen free.
Surface mounting.
The bus can be connected via enclosed terminal block. DP4-F 2CKA006220A0389 1
Display size / resolution: 17.8 cm (7") / 800 x 480
Consumer units: 11
Display elements: TFT Touch Display Temperature sensor
Dimensions: (L x W x D): 155 mm x 218 mm x 29 mm For use as remote sensor with ABB- free@homeTouch
Programming only with bus voltage applied via the web 4.3".
interface of the System Access Point. Line type: H03 VV-F
The power is supplied by the ABB-Welcome system Cable length: 4 m
controller or when using the ABB-free@home panel Type: NTC 10 kohm.
without an ABB-Welcome system, a separate ABB 24 V-
power supply is required. DP4-T-1 2CKA006220A0721 1
Protection class (device): IP30
Temperature range (device): -5 °C to 40 °C
White DP7-S-611 2CKA008300A0356 1
Black DP7-S-625 2CKA008300A0357 1
11
ABB-free@homeTouch 4.3"
For the central control of up to 16 configurable
ABB-free@home® functions.
For the display of configurable system messages.
A configurable primary function can be triggered with
a multi-touch gesture.
Capacitive touch screen with closed glass surface.
With integrated room temperature controller and
temperature sensor.
In connection with temperature sensor 6226/T the
integrated room temperature controller can be fitted
with a remote sensor.
Suitable as room temperature controller extension unit
(up to 8).
Requires additional ABB power supply 24 VDC.
Display size / resolution: 10.9 cm (4.3") / 480 x 854.
Mounting height: 8 mm
Control element: freely programmable touch surfaces.
Display elements: LCD display
Bus voltage: 24 V-
Dimensions: (L x W x D): 104 mm x 143 mm x 53 mm
Programming only with bus voltage applied via the web
interface of the System Access Point.
Protection class (device): IP20
Temperature range (device): -5 °C to 40 °C

White DP4-1-611 2CKA006220A0119 1
Black DP4-1-625 2CKA006220A0120 1
