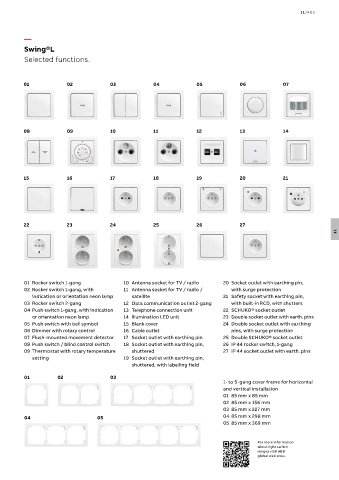

Page 1509 - Din prodcuts 2020

11/403

—
Swing®L
Selected functions.

01 02 03 04 05 06 07

08 09 10 11 12 13 14

15 16 17 18 19 20 21

22 23 24 25 26 27
11

01 Rocker switch 1-gang 10 Antenna socket for TV / radio 20 Socket outlet with earthing pin,
02 Rocker switch 1-gang, with 11 Antenna socket for TV / radio / with surge protection
indication or orientation neon lamp satellite 21 Safety socket with earthing pin,
03 Rocker switch 2-gang 12 Data communication outlet 2-gang with built-in RCD, with shutters
04 Push switch 1-gang, with indication 13 Telephone connection unit 22 SCHUKO® socket outlet
or orientation neon lamp 14 Illumination LED unit 23 Double socket outlet with earth. pins
05 Push switch with bell symbol 15 Blank cover 24 Double socket outlet with earthing
06 Dimmer with rotary control 16 Cable outlet pins, with surge protection
07 Flush-mounted movement detector 17 Socket outlet with earthing pin 25 Double SCHUKO® socket outlet
08 Push switch / blind control switch 18 Socket outlet with earthing pin, 26 IP 44 rocker switch, 1-gang
09 Thermostat with rotary temperature shuttered 27 IP 44 socket outlet with earth. pins
setting 19 Socket outlet with earthing pin,
shuttered, with labelling field

01 02 03
1- to 5-gang cover frame for horizontal
and vertical installation
01 85 mm x 85 mm
02 85 mm x 156 mm
03 85 mm x 227 mm
04 05 04 85 mm x 298 mm
05 85 mm x 369 mm

For more information
about light switch
ranges visit ABB
global web sites.
