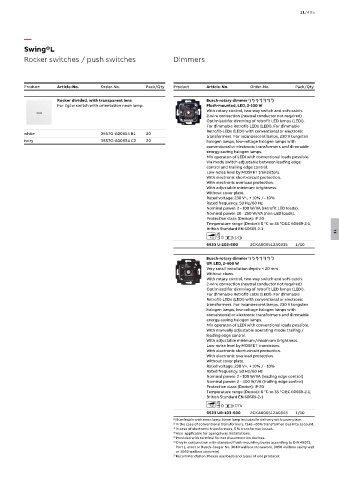

11/405

—
Swing®L
Rocker switches / push switches Dimmers

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

3
7
5
4
6
2
Rocker divided, with transparent lens Busch-rotary dimmer ) ) ) ) ) ) )
1
For 2g1w switch with orientation neon lamp. Flush-mounted, LED, 2-100 W
With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi). For dimmable
Retrofit-LEDs (LEDi) with conventional or electronic
white 3557G-A00654 B1 20
transformers. For incandescent lamps, 230 V tungsten
ivory 3557G-A00654 C2 20 halogen lamps, low-voltage halogen lamps with
conventional or electronic transformers and dimmable
energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
Via mode switch adjustable between leading edge
control and trailing edge control.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection.
With electronic overload protection.
With adjustable minimum brightness.
Without cover plate.
Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (retrofit LED loads).
Nominal power: 10 - 250 W/VA (non-LED loads).
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1,
British Standard EN 60669-2-1
11

6523 U-102-500 2CKA006512A0335 1/10
2
7
1
6
4
Busch-rotary dimmer ) ) ) ) ) ) )
3
5
UP, LED, 2-400 W
Very small installation depth: < 20 mm
Without claws.
With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi). For dimmable
Retrofit-LEDs (LEDi) with conventional or electronic
transformers. For incandescent lamps, 230 V tungsten
halogen lamps, low-voltage halogen lamps with
conventional or electronic transformers and dimmable
energy-saving halogen lamps.
Mix operaton of LEDi with conventional loads possible.
With manually adjustable operating mode: trailing /
leading edge control.
With adjustable minimum/maximum brightness.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection.
With electronic overload protection.
Without cover plate.
Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (leading edge control)
Nominal power: 2 - 400 W/VA (trailing edge control)
Protection class (Device): IP 20
Temperature range (Device): 0 °C to 35 °CIEC 60669-2-1,
British Standard EN 60669-2-1

6523 UR-103-500 2CKA006512A0345 1/10
1) Illuminable with neon lamp. Neon lamp included in delivery with cover plate.
2) In the case of conventional transformers, take ~20% transformer loss into account.
3) In case of electronic transformers, 5 % transformer losses.
4) Also applicable for 1gang 2way installations.
5) Provided with terminal for net disconnection devices.
6) Only in conjunction with standard flush-mounting boxes according to DIN 49073,
Part 1, erect or Busch-Jaeger No. 3040 wallbox stonework, 3050 wallbox cavity wall
or 3060 wallbox concrete)
7) Recommendation: Please use loads and types of one producer.
