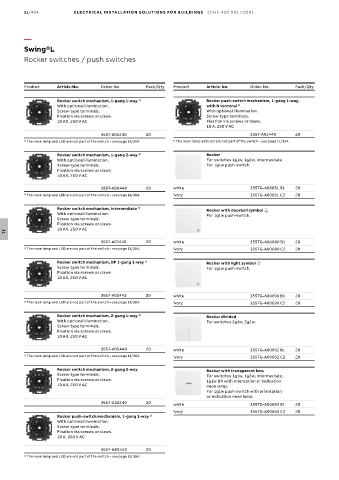

11/404 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Swing®L
Rocker switches / push switches

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

Rocker switch mechanism, 1-gang 1-way 1) Rocker push-switch mechanism, 1-gang 1-way,
With optional illumination. with N terminal 1)
Screw-type terminals. With optional illumination.
Fixation via screws or claws. Screw-type terminals.
10 AX, 250 V AC Fixation via screws or claws.
10 A, 250 V AC
3557-A01440 20 3557-A91440 20
1) The neon lamp and LED are not part of the switch – see page 11/384. 1) The neon lamp and LED are not part of the switch – see page 11/384.

Rocker switch mechanism, 1-gang 2-way 1) Rocker
With optional illumination. For switches 1g1w, 1g2w, intermediate.
Screw-type terminals. For 1g1w push-switch.
Fixation via screws or claws.
10 AX, 250 V AC

3557-A06440 20 white 3557G-A00651 B1 20
1) The neon lamp and LED are not part of the switch – see page 11/384. ivory 3557G-A00651 C2 20

Rocker switch mechanism, intermediate 1) Rocker with doorbell symbol
With optional illumination. For 1g1w push-switch.
Screw-type terminals.
Fixation via screws or claws.
10 AX, 250 V AC
11
3557-A07440 20 white 3557G-A00680 B1 20
1) The neon lamp and LED are not part of the switch – see page 11/384. ivory 3557G-A00680 C2 20

Rocker switch mechanism, DP 1-gang 1-way 1) Rocker with light symbol
Screw-type terminals. For 1g1w push-switch.
Fixation via screws or claws.
10 AX, 250 V AC

3557-A02442 20 white 3557G-A00690 B1 20
1) The neon lamp and LED are not part of the switch – see page 11/384.
ivory 3557G-A00690 C2 20
Rocker switch mechanism, 2-gang 1-way 1) Rocker divided
With optional illumination. For switches 2g1w, 2g2w.
Screw-type terminals.
Fixation via screws or claws.
10 AX, 250 V AC

3557-A05440 20 white 3557G-A00652 B1 20
1) The neon lamp and LED are not part of the switch – see page 11/384.
ivory 3557G-A00652 C2 20
Rocker switch mechanism, 2-gang 2-way Rocker with transparent lens
Screw-type terminals. For switches 1g1w, 1g2w, intermediate,
Fixation via screws or claws. 1g1w DP with orientation or indication
10 AX, 250 V AC neon lamp.
For 1g1w push-switch with orientation
or indication neon lamp.
3557-A52440 20
white 3557G-A00653 B1 20
ivory 3557G-A00653 C2 20
Rocker push-switch mechanism, 1-gang 1-way 1)
With optional illumination.
Screw-type terminals.
Fixation via screws or claws.
10 A, 250 V AC

3557-A80440 20
1) The neon lamp and LED are not part of the switch – see page 11/384.
