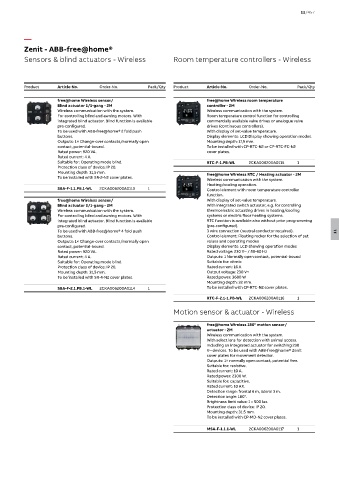

Page 1563 - Din prodcuts 2020

11/457

—
Zenit - ABB-free@home®
Sensors & blind actuators - Wireless Room temperature controllers - Wireless

Product Article-No. Order-No. Pack/Qty Product Article-No. Order-No. Pack/Qty

free@home Wireless sensor/ free@home Wireless room temperature
Blind actuator 1/1-gang - 2M controller - 2M
Wireless communication with the system. Wireless communication with the system.
For controlling blind and awning motors. With Room temperature control function for controlling
integrated blind actuator. Blind function is available commercially available valve drives or analogue valve
pre-configured. drives (continuous controllers).
To be used with ABB-free@home® 2 fold push With display of set-value temperature.
buttons. Display elements: LCD Display showing operation modes.
Outputs: 1× Change-over contacts/normally open Mounting depth: 17,9 mm.
contact, potential-bound. To be installed with CP-RTC-N2 or CP-RTC-FC-N2
Rated power: 920 VA. cover plates.
Rated current: 4 A.
Suitable for: Operating mode blind. RTC-F-1.PB-WL 2CKA006200A0115 1
Protection class of device: IP 20.
Mounting depth: 31,5 mm. free@home Wireless RTC / Heating actuator - 2M
To be installed with SR-2-N2 cover plates.
Wireless communication with the system.
Heating/cooling operation.
SBA-F-1.1.PB.1-WL 2CKA006200A0113 1 Control element with room temperature controller
function.
free@home Wireless sensor/ With display of set-value temperature.
Blind actuator 2/1-gang - 2M With integrated switch actuator, e.g. for controlling
Wireless communication with the system. thermoelectric actuating drives in heating/cooling
For controlling blind and awning motors. With systems or electric floor heating systems.
integrated blind actuator. Blind function is available RTC function is available also without prior programming
pre-configured. (pre-configured).
To be used with ABB-free@home® 4 fold push 3 wire connection (neutral conductor required). 11
buttons. Control element: Floating rocker for the selection of set
Outputs: 1× Change-over contacts/normally open values and operating modes
contact, potential-bound. Display elements: LCD showing operation modes
Rated power: 920 VA. Rated voltage: 230 V~ / 50-60 Hz
Rated current: 4 A. Outputs: 1 Normally open contact, potential-bound
Suitable for: Operating mode blind. Suitable for: ohmic
Protection class of device: IP 20. Rated current: 16 A
Mounting depth: 31,5 mm. Output voltage: 230 V~
To be installed with SR-4-N2 cover plates. Rated power: 3680 W
Mounting depth: 32 mm.
SBA-F-2.1.PB.1-WL 2CKA006200A0114 1 To be installed with CP-RTC-N2 cover plates.
RTC-F-2.1-1.PB-WL 2CKA006200A0116 1
Motion sensor & actuator - Wireless

free@home Wireless 180° motion sensor/
actuator - 2M
Wireless communication with the system.
With select lens for detection with animal access.
Including an integrated actuator for switching 230
V~ devices. To be used with ABB-free@home® Zenit
cover plates for movement detector.
Outputs: 1× normally open contact, potential free.
Suitable for: resistive.
Rated current: 10 A.
Rated power: 2300 W.
Suitable for: capacitive.
Rated current: 10 AX.
Detection range: frontal 6 m, lateral 3 m.
Detection angle: 180°.
Brightness limit value: 1 – 500 lux.
Protection class of device: IP 20.
Mounting depth: 31.5 mm.
To be installed with CP-MD-N2 cover plates.

MSA-F-1.1.1-WL 2CKA006200A0117 1
