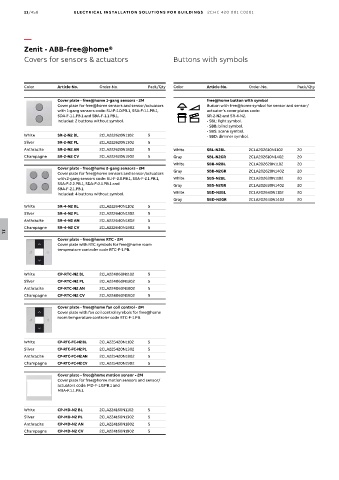

11/458 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Zenit - ABB-free@home®
Covers for sensors & actuators Buttons with symbols

Color Article-No. Order-No. Pack/Qty Color Article-No. Order-No. Pack/Qty

Cover plate - free@home 1-gang sensors - 2M free@home button with symbol
Cover plate for free@home sensors and sensor/actuators Button with free@home symbol for sensor and sensor/
with 1-gang sensors code: SU-F-1.0.PB.1, SSA-F-1.1.PB.1, actuator’s cover plates code:
SDA-F-1.1.PB.1 and SBA-F-1.1.PB.1. SR-2-N2 and SR-4-N2.
Included: 2 buttons without symbol. - SBL: light symbol.
- SBB: blind symbol.
- SBS: scene symbol.
White SR-2-N2 BL 2CLA222620N1102 5 - SBD: dimmer symbol.
Silver SR-2-N2 PL 2CLA222620N1302 5
Anthracite SR-2-N2 AN 2CLA222620N1802 5 White SBL-N2BL 2CLA202610N1102 20
Champagne SR-2-N2 CV 2CLA222620N1902 5 Gray SBL-N2GR 2CLA202610N1402 20
White SBB-N2BL 2CLA202620N1102 20
Cover plate - free@home 2-gang sensors - 2M
Cover plate for free@home sensors and sensor/actuators Gray SBB-N2GR 2CLA202620N1402 20
with 2-gang sensors code: SU-F-2.0.PB.1, SSA-F-2.1.PB.1, White SBS-N2BL 2CLA202630N1102 20
SSA-F-2.2.PB.1, SDA-F-2.1.PB.1 and Gray SBS-N2GR 2CLA202630N1402 20
SBA-F-2.1.PB.1.
Included: 4 buttons without symbol. White SBD-N2BL 2CLA202640N1102 20
Gray SBD-N2GR 2CLA202640N1402 20
White SR-4-N2 BL 2CLA222640N1102 5
Silver SR-4-N2 PL 2CLA222640N1302 5
Anthracite SR-4-N2 AN 2CLA222640N1802 5
Champagne SR-4-N2 CV 2CLA222640N1902 5
11
Cover plate - free@home RTC - 2M
Cover plate with RTC symbols for free@home room
temperature controler code RTC-F-1.PB.

White CP-RTC-N2 BL 2CLA224060N1102 5
Silver CP-RTC-N2 PL 2CLA224060N1302 5
Anthracite CP-RTC-N2 AN 2CLA224060N1802 5
Champagne CP-RTC-N2 CV 2CLA224060N1902 5

Cover plate - free@home fan coil control - 2M
Cover plate with fan coil control symbols for free@home
room temperature controler code RTC-F-1.PB.

White CP-RTC-FC-N2 BL 2CLA225420N1102 5
Silver CP-RTC-FC-N2 PL 2CLA225420N1302 5
Anthracite CP-RTC-FC-N2 AN 2CLA225420N1802 5
Champagne CP-RTC-FC-N2 CV 2CLA225420N1902 5

Cover plate - free@home motion sensor - 2M
Cover plate for free@home motion sensors and sensor/
actuators code: MD-F-1.0.PB.1 and
MSA-F.1.1.PB.1.

White CP-MD-N2 BL 2CLA224160N1102 5
Silver CP-MD-N2 PL 2CLA224160N1302 5
Anthracite CP-MD-N2 AN 2CLA224160N1802 5
Champagne CP-MD-N2 CV 2CLA224160N1902 5
