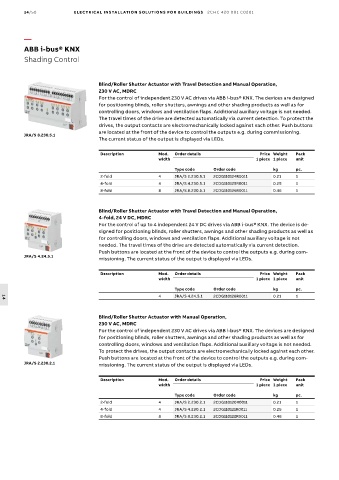

14/50 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Shading Control

Blind/Roller Shutter Actuator with Travel Detection and Manual Operation,
230 V AC, MDRC
For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed
for positioning blinds, roller shutters, awnings and other shading products as well as for
controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed.
The travel times of the drive are detected automatically via current detection. To protect the
drives, the output contacts are electromechanically locked against each other. Push buttons
are located at the front of the device to control the outputs e.g. during commissioning.
JRA/S 8.230.5.1
The current status of the output is displayed via LEDs.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
2-fold 4 JRA/S 2.230.5.1 2CDG110124R0011 0.21 1
4-fold 4 JRA/S 4.230.5.1 2CDG110125R0011 0.25 1
8-fold 8 JRA/S 8.230.5.1 2CDG110126R0011 0.46 1

Blind/Roller Shutter Actuator with Travel Detection and Manual Operation,
4-fold, 24 V DC, MDRC
For the control of up to 4 independent 24 V DC drives via ABB i-bus® KNX. The device is de-
signed for positioning blinds, roller shutters, awnings and other shading products as well as
for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not
needed. The travel times of the drive are detected automatically via current detection.
Push buttons are located at the front of the device to control the outputs e.g. during com-
JRA/S 4.24.5.1
missioning. The current status of the output is displayed via LEDs.
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
4 JRA/S 4.24.5.1 2CDG110128R0011 0.21 1
14

Blind/Roller Shutter Actuator with Manual Operation,
230 V AC, MDRC
For the control of independent 230 V AC drives via ABB i-bus® KNX. The devices are designed
for positioning blinds, roller shutters, awnings and other shading products as well as for
controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed.
To protect the drives, the output contacts are electromechanically locked against each other.
Push buttons are located at the front of the device to control the outputs e.g. during com-
JRA/S 2.230.2.1 missioning. The current status of the output is displayed via LEDs.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
2-fold 4 JRA/S 2.230.2.1 2CDG110120R0011 0.21 1
4-fold 4 JRA/S 4.230.2.1 2CDG110121R0011 0.25 1
8-fold 8 JRA/S 8.230.2.1 2CDG110122R0011 0.46 1
