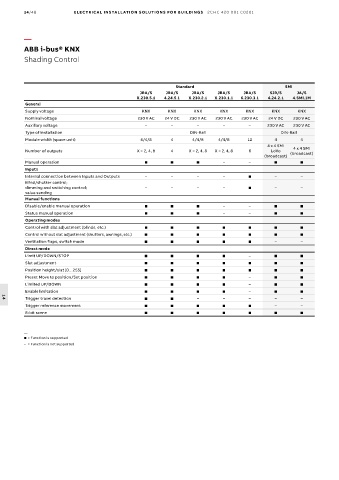

14/48 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Shading Control

Standard SMI
JRA/S JRA/S JRA/S JRA/S JRA/S SJR/S JA/S
X.230.5.1 4.24.5.1 X.230.2.1 X.230.1.1 6.230.3.1 4.24.2.1 4.SMI.1M
General
Supply voltage KNX KNX KNX KNX KNX KNX KNX
Nominal voltage 230 V AC 24 V DC 230 V AC 230 V AC 230 V AC 24 V DC 230 V AC
Auxiliary voltage – – – – – 230 V AC 230 V AC
Type of installation DIN-Rail DIN-Rail
Module width (space unit) 4/4/8 4 4/4/8 4/4/8 12 4 4
4 x 4 SMI 4 x 4 SMI
Number of outputs X = 2, 4, 8 4 X = 2, 4, 8 X = 2, 4, 8 6 LoVo (broadcast)
(broadcast)
Manual operation    – –  
Inputs
Internal connection between Inputs and Outputs – – – –  – –
Blind/shutter control;
dimming and switching control; – – – –  – –
value sending
Manual functions
Disable/enable manual operation    – –  
Status manual operation    – –  
Operating modes
Control with slat adjustment (blinds, etc.)       
Control without slat adjustment (shutters, awnings, etc.)       
Ventilation flaps, switch mode      – –
Direct mode
Limit UP/DOWN/STOP     –  
Slat adjustment       
Position height/slat [0…255]       
Preset Move to position/Set position     –  
Limited UP/DOWN     –  
Enable limitation     –  
Trigger travel detection   – – – – –
14
Trigger reference movement      – –
8-bit scene       

—
 = Function is supported
– = Function is not supported
