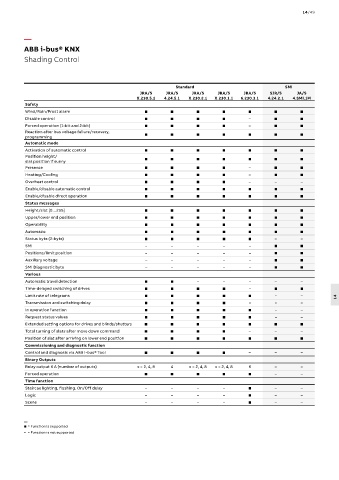

ABB i-bus® KNX
Shading Control

Standard SMI
JRA/S JRA/S JRA/S JRA/S JRA/S SJR/S JA/S
X.230.5.1 4.24.5.1 X.230.2.1 X.230.1.1 6.230.3.1 4.24.2.1 4.SMI.1M
Safety
Wind/Rain/Frost alarm       
Disable control     –  
Forced operation (1-bit and 2-bit)     –  
Reaction after bus voltage failure/recovery,
programming       
Automatic mode
Activation of automatic control       
Position height/
slat position if sunny       
Presence     –  
Heating/Cooling     –  
Overheat control     – – –
Enable/disable automatic control       
Enable/disable direct operation       
Status messages
Height/slat [0…255]       
Upper/lower end position       
Operability       
Automatic       
Status byte (2-byte)      – –
SMI – – – – –  
Positions/limit position – – – – –  
Auxiliary voltage – – – – –  
SMI Diagnostic byte – – – – –  
Various
Automatic travel detection   – – – – –
Time-delayed switching of drives     –  
Limit rate of telegrams      – – 14
Transmission and switching delay     – – –
In operation function      – –
Request status values      – –
Extended setting options for drives and blinds/shutters       
Total turning of slats after move down command     – – –
Position of slat after arriving on lower end position       
Commissioning and diagnostic function
Control and diagnosis via ABB i-bus® Tool     – – –
Binary Outputs
Relay output 6 A (number of outputs) x = 2, 4, 8 4 x = 2, 4, 8 x = 2, 4, 8 6 – –
Forced operation      – –
Time function
Staircae lighting, flashing, On/Off delay – – – –  – –
Logic – – – –  – –
Scene – – – –  – –

—
 = Function is supported
– = Function is not supported
