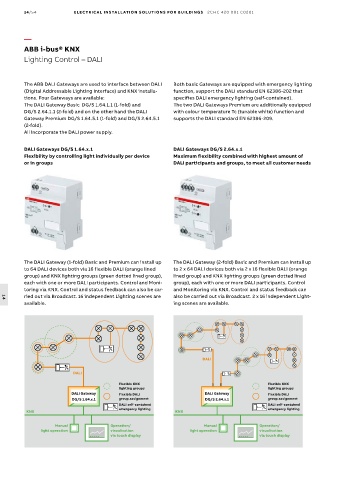

14/54 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Lighting Control – DALI

The ABB DALI Gateways are used to interface between DALI Both basic Gateways are equipped with emergency lighting
(Digital Addressable Lighting Interface) and KNX installa- function, support the DALI standard EN 62386-202 that
tions. Four Gateways are available: specifies DALI emergency lighting (self-contained).
The DALI Gateway Basic DG/S 1.64.1.1 (1-fold) and The two DALI Gateways Premium are additionally equipped
DG/S 2.64.1.1 (2-fold) and on the other hand the DALI with colour temperature Tc (tunable white) function and
Gateway Premium DG/S 1.64.5.1 (1-fold) and DG/S 2.64.5.1 supports the DALI standard EN 62386-209.
(2-fold).
All incorporate the DALI power supply.

DALI Gateways DG/S 1.64.x.1 DALI Gateways DG/S 2.64.x.1
Flexibility by controlling light individually per device Maximum flexibility combined with highest amount of
or in groups DALI participants and groups, to meet all customer needs

The DALI Gateway (1-fold) Basic and Premium can install up The DALI Gateway (2-fold) Basic and Premium can install up
to 64 DALI de vices both via 16 flexible DALI (orange lined to 2 x 64 DALI de vices both via 2 x 16 flexible DALI (orange
group) and KNX lighting groups (green dotted lined group), lined group) and KNX lighting groups (green dotted lined
each with one or more DALI participants. Control and Moni- group), each with one or more DALI participants. Control
toring via KNX. Control and status feedback can also be car- and Monitoring via KNX. Control and status feedback can
ried out via Broadcast. 16 independent Lighting scenes are also be carried out via Broadcast. 2 x 16 independent Light-
14
available. ing scenes are available.

DALI

DALI

Flexible KNX 1 2 Flexible KNX
lighting groups lighting groups
DALI Gateway Flexible DALI DALI Gateway Flexible DALI
DG/S 1.64.x.1 group assignment DG/S 2.64.x.1 group assignment
DALI self-contained DALI self-contained
emergency lighting emergency lighting
KNX KNX

Manual Operation/ Manual Operation/
light operation visualisation light operation visualisation
via touch display via touch display
