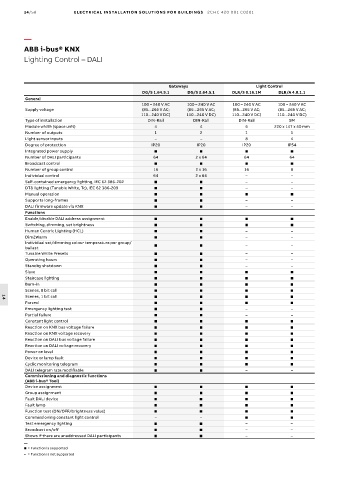

14/58 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
Lighting Control – DALI

Gateways Light Control
DG/S 1.64.5.1 DG/S 2.64.5.1 DLR/S 8.16.1M DLR/A 4.8.1.1
General
100 – 240 V AC 100 – 240 V AC 100 – 240 V AC 100 – 240 V AC
Supply voltage (85...265 V AC; (85...265 V AC; (85...265 V AC; (85...265 V AC;
110...240 V DC) 110...240 V DC) 110...240 V DC) 110...240 V DC)
Type of installation DIN-Rail DIN-Rail DIN-Rail SM
Module width (space unit) 4 4 6 220 x 147 x 50 mm
Number of outputs 1 2 1 1
Light sensor inputs – – 8 4
Degree of protection IP20 IP20 IP20 IP54
Integrated power supply    
Number of DALI participants 64 2 x 64 64 64
Broadcast control    
Number of group control 16 2 x 16 16 8
Individual control 64 2 x 64 – –
Self-contained emergency lighting, IEC 62 386-202   – –
DT8 lighting (Tunable White, Tc), IEC 62 386-209   – –
Manual operation    
Supports long-frames   – –
DALI firmware update via KNX   – –
Functions
Enable/disable DALI address assignment    
Switching, dimming, set brightness    
Human Centric Lighting (HCL)   – –
Dim2Warm   – –
Individual set/dimming colour temperature per group/ – –
ballast  
Tunable White Presets   – –
Operating hours   – –
Standby shutdown   – –
Slave    
Staircase lighting    
Burn-in    
Scenes, 8 bit call    
Scenes, 1 bit call    
14
Forced    
Emergency lighting test   – –
Partial failure   – –
Constant light control    
Reaction on KNX bus voltage failure    
Reaction on KNX voltage recovery    
Reaction on DALI bus voltage failure    
Reaction on DALI voltage recovery    
Power on level    
Device or lamp fault    
Cyclic monitoring telegram    
DALI telegram rate modifiable   – –
Commissioning and diagnostic functions
(ABB i-bus® Tool)
Device assignment    
Group assignment    
Fault DALI device    
Fault lamp    
Function test (ON/OFF/brightness value)    
Commissioning constant light control – –  
Test emergency lighting   – –
Broadcast on/off   – –
Shows if there are unaddressed DALI participants   – –
—
 = Function is supported
– = Function is not supported
