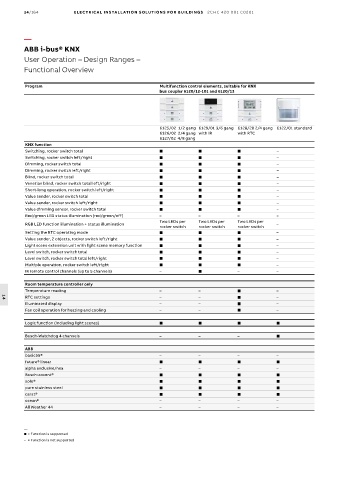

14/164 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program Multifunction control elements, suitable for KNX
bus coupler 6120/12-101 and 6120/13

6125/02 1/2 gang 6129/01 3/6 gang 6128/28 2/4 gang 6122/01 standard
6126/02 2/4 gang with IR with RTC
6127/02 4/8 gang
KNX function
Switching, rocker switch total ■ ■ ■ –
Switching, rocker switch left/right ■ ■ ■ –
Dimming, rocker switch total ■ ■ ■ –
Dimming, rocker switch left/right ■ ■ ■ –
Blind, rocker switch total ■ ■ ■ –
Venetian blind, rocker switch total left/right ■ ■ ■ –
Short-long operation, rocker switch left/right ■ ■ ■ –
Value sender, rocker switch total ■ ■ ■ –
Value sender, rocker switch left/right ■ ■ ■ –
Value dimming sensor, rocker switch total ■ ■ ■ –
Red/green LED status illumination (red/green/off) – – – –
Two LEDs per Two LEDs per Two LEDs per
RGB LED function illumination + status illumination –
rocker switch rocker switch rocker switch
Setting the RTC operating mode ■ ■ ■ –
Value sender, 2 objects, rocker switch left/right ■ ■ ■ –
Light scene extension unit with light scene memory function ■ ■ ■ –
Level switch, rocker switch total ■ ■ ■ –
Level switch, rocker switch total left/right ■ ■ ■ –
Multiple operation, rocker switch left/right ■ ■ ■ –
IR remote control channels (up to 5 channels) – ■ – –

Room temperature controller only
Temperature reading – – ■ –
RTC settings – – ■ –
14
Illuminated display – – ■ –
Fan coil operation for heating and cooling – – ■ –
Logic function (including light scenes) ■ ■ ■ ■

Busch-Watchdog 4 channels – – – ■

ABB
basic55® – – – –
future® linear ■ ■ ■ ■
alpha exclusive/nea – – – –
Busch-axcent® ■ ■ ■ ■
solo® ■ ■ ■ ■
pure stainless steel ■ ■ ■ ■
carat® ■ ■ ■ ■
ocean® – – – –
All Weather 44 – – – –

—
 = Function is supported
– = Function is not supported
