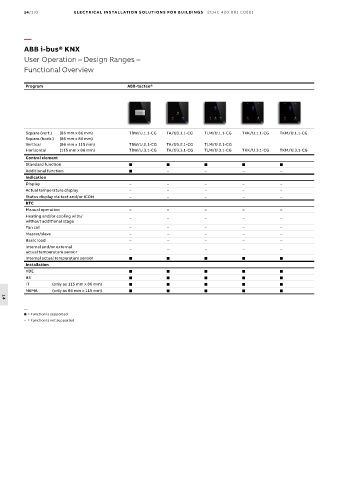

14/170 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program ABB-tacteo®

Square (vert.) (86 mm x 86 mm) TBW/U.1.1-CG TA/U3.1.1-CG TLM/U.1.1-CG TKK/U.1.1-CG TKM/U.1.1-CG
Square (horiz.) (86 mm x 86 mm)
Vertical (86 mm x 115 mm) TBW/U.2.1-CG TA/U3.2.1-CG TLM/U.2.1-CG
Horizontal (115 mm x 86 mm) TBW/U.3.1-CG TA/U3.3.1-CG TLM/U.3.1-CG TKK/U.3.1-CG TKM/U.3.1-CG
Control element
Standard function ■ ■ ■ ■ ■
Additional function ■ – – – –
Indication
Display – – – – –
Actual temperature display – – – – –
Status display via text and/or ICON – – – – –
RTC
Manual operation – – – – –
Heating and/or cooling with/
without additional stage – – – – –
Fan coil – – – – –
Master/slave – – – – –
Basic load – – – – –
Internal and/or external – – – – –
actual temperature sensor
Internal actual temperature sensor ■ ■ ■ ■ ■
Installation
VDE ■ ■ ■ ■ ■
BS ■ ■ ■ ■ ■
IT (only as 115 mm x 86 mm) ■ ■ ■ ■ ■
NEMA (only as 86 mm x 115 mm) ■ ■ ■ ■ ■

14
—
 = Function is supported
– = Function is not supported
