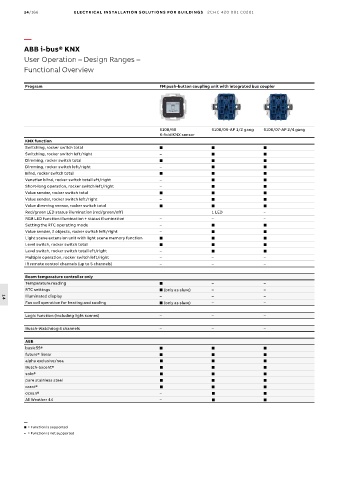

14/166 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program FM push-button coupling unit with integrated bus coupler

6108/60 6108/06-AP 1/2 gang 6108/07-AP 2/4 gang
6-fold KNX sensor
KNX function
Switching, rocker switch total ■ ■ ■
Switching, rocker switch left/right – ■ ■
Dimming, rocker switch total ■ ■ ■
Dimming, rocker switch left/right – ■ ■
Blind, rocker switch total ■ ■ ■
Venetian blind, rocker switch total left/right – ■ ■
Short-long operation, rocker switch left/right – ■ ■
Value sender, rocker switch total ■ ■ ■
Value sender, rocker switch left/right – ■ ■
Value dimming sensor, rocker switch total ■ ■ ■
Red/green LED status illumination (red/green/off) 1 LED –
RGB LED function illumination + status illumination – – –
Setting the RTC operating mode – ■ ■
Value sender, 2 objects, rocker switch left/right – ■ ■
Light scene extension unit with light scene memory function ■ ■ ■
Level switch, rocker switch total ■ ■ ■
Level switch, rocker switch total left/right – ■ ■
Multiple operation, rocker switch left/right – – –
IR remote control channels (up to 5 channels) – – –

Room temperature controller only
Temperature reading ■ – –
RTC settings ■ (only as slave) – –
Illuminated display – – –
14
Fan coil operation for heating and cooling ■ (only as slave) – –
Logic function (including light scenes) – – –

Busch-Watchdog 4 channels – – –
ABB
basic55® ■ ■ ■
future® linear ■ ■ ■
alpha exclusive/nea ■ ■ ■
Busch-axcent® ■ ■ ■
solo® ■ ■ ■
pure stainless steel ■ ■ ■
carat® ■ ■ ■
ocean® – ■ ■
All Weather 44 – ■ ■

—
 = Function is supported
– = Function is not supported
