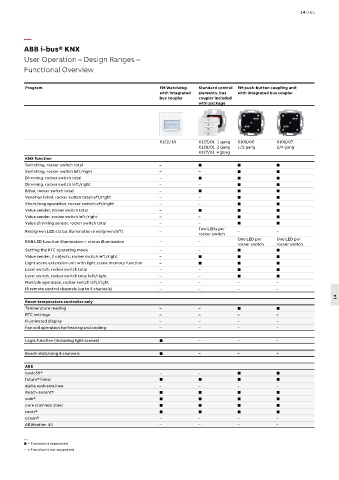

ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program FM Watchdog Standard control FM push-button coupling unit
with integrated elements, bus with integrated bus coupler
bus coupler coupler included
with package

6122/10 6125/01 1 gang 6108/06 6108/07
6126/01 2 gang 1/2 gang 2/4 gang
6127/01 4 gang
KNX function
Switching, rocker switch total – ■ ■ ■
Switching, rocker switch left/right – – ■ ■
Dimming, rocker switch total – ■ ■ ■
Dimming, rocker switch left/right – – ■ ■
Blind, rocker switch total – ■ ■ ■
Venetian blind, rocker switch total left/right – – ■ ■
Short-long operation, rocker switch left/right – – ■ ■
Value sender, rocker switch total – ■ ■ ■
Value sender, rocker switch left/right – – ■ ■
Value dimming sensor, rocker switch total – – ■ ■
Two LEDs per
Red/green LED status illumination (red/green/off) – – –
rocker switch
One LED per One LED per
RGB LED function illumination + status illumination – –
rocker switch rocker switch
Setting the RTC operating mode – – ■ ■
Value sender, 2 objects, rocker switch left/right – ■ ■ ■
Light scene extension unit with light scene memory function – ■ ■ ■
Level switch, rocker switch total – – ■ ■
Level switch, rocker switch total left/right – – ■ ■
Multiple operation, rocker switch left/right – – – –
IR remote control channels (up to 5 channels) – – – –
14
Room temperature controller only
Temperature reading – – ■ ■
RTC settings – – – –
Illuminated display – – – –
Fan coil operation for heating and cooling – – – –

Logic function (including light scenes) ■ – – –

Busch-Watchdog 4 channels ■ – – –

ABB
basic55® – – ■ ■
future® linear ■ ■ ■ ■
alpha exclusive/nea – – – –
Busch-axcent® ■ ■ ■ ■
solo® ■ ■ ■ ■
pure stainless steel ■ ■ ■ ■
carat® ■ ■ ■ ■
ocean® – – – –
All Weather 44 – – – –

—
 = Function is supported
– = Function is not supported
