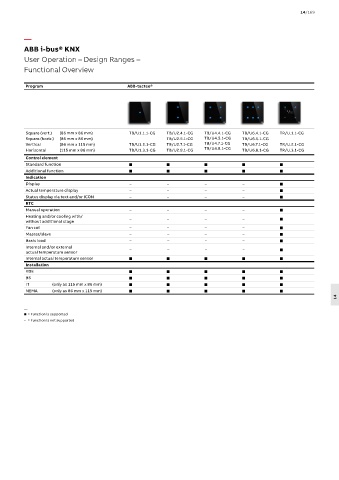

ABB i-bus® KNX
User Operation – Design Ranges –
Functional Overview

Program ABB-tacteo®

Square (vert.) (86 mm x 86 mm) TB/U1.1.1-CG TB/U2.4.1-CG TB/U4.4.1-CG TB/U6.4.1-CG TR/U.1.1-CG
Square (horiz.) (86 mm x 86 mm) TB/U2.5.1-CG TB/U4.5.1-CG TB/U6.5.1-CG
Vertical (86 mm x 115 mm) TB/U1.2.1-CG TB/U2.7.1-CG TB/U4.7.1-CG TB/U6.7.1-CG TR/U.2.1-CG
Horizontal (115 mm x 86 mm) TB/U1.3.1-CG TB/U2.8.1-CG TB/U4.8.1-CG TB/U6.8.1-CG TR/U.3.1-CG
Control element
Standard function ■ ■ ■ ■ ■
Additional function ■ ■ ■ ■ ■
Indication
Display – – – – ■
Actual temperature display – – – – ■
Status display via text and/or ICON – – – – ■
RTC
Manual operation – – – – ■
Heating and/or cooling with/ – – – –
without additional stage ■
Fan coil – – – – ■
Master/slave – – – – ■
Basic load – – – – ■
Internal and/or external – – – –
actual temperature sensor ■
Internal actual temperature sensor ■ ■ ■ ■ ■
Installation
VDE ■ ■ ■ ■ ■
BS ■ ■ ■ ■ ■
IT (only as 115 mm x 86 mm) ■ ■ ■ ■ ■
NEMA (only as 86 mm x 115 mm) ■ ■ ■ ■ ■
14

—
 = Function is supported
– = Function is not supported
